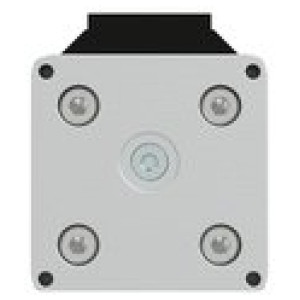

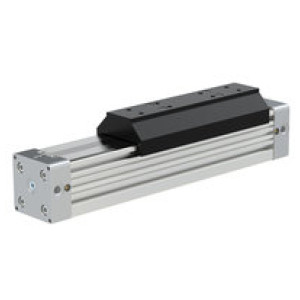

Piston rod-free cylinderZRL1S, Ø32,stroke1300,Standard,slow speed
SKU: 129848RIE
EAN: 4047322740555
Piston rod-free cylinder ZRL1S, Ø 32, stroke 1300, Standard, slow speed, Working pressure 0.5 to 8 bar, Temp. -10 to 55 °C
Rodless cylinder with integrated plastic sliding. Please refer to our type code for the available variants and their corresponding type designations for your individual inquiry. Other special designs are also available on request
The integrated sliding guide allows higher loads and makes the cylinders less sensitive to moisture, dirt and shocks.
Suitable for filtered (50 µm) and unlubricated or lubricated compressed air. Please ensure continuous oiling when using oiled compressed air.
Šifra | Povezava | Bat Ø [mm] | Stroke [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|
129692RIE | G 1 /4 | 50 | 100 | Ni na zalogi | ? | Povpraševanje | |
129848RIE | G 1 /4 | 32 | 1300 | Ni na zalogi | ? | Povpraševanje | |
129858RIE | G 1 /4 | 40 | 600 | Ni na zalogi | ? | Povpraševanje | |
129693RIE | G 3/8 | 63 | 100 | Ni na zalogi | ? | Povpraševanje | |
129690RIE | G 1 /4 | 32 | 100 | Ni na zalogi | ? | Povpraševanje | |
129691RIE | G 1 /4 | 40 | 100 | Ni na zalogi | ? | Povpraševanje |
Opis
Piston rod-free cylinder ZRL1S, Ø 32, stroke 1300, Standard, slow speed, Working pressure 0.5 to 8 bar, Temp. -10 to 55 °C
Rodless cylinder with integrated plastic sliding. Please refer to our type code for the available variants and their corresponding type designations for your individual inquiry. Other special designs are also available on request
The integrated sliding guide allows higher loads and makes the cylinders less sensitive to moisture, dirt and shocks.
Suitable for filtered (50 µm) and unlubricated or lubricated compressed air. Please ensure continuous oiling when using oiled compressed air.
Tehnični podatki in specifikacije
Magnet | with magnet |
Ffunkcija | double-acting |
Cushioning | cushioned |
Min. delovni tlak [bar] | 0.5 |
Max. delovni tlak [bar] | 8 |
Min. temperaturno območje [°C] | -10 |
Max. temperaturno območje [°C] | 55 |
Tesnilo | Oil proof synthetic material (NBR) |
Sealing bands | Stainless steel |
Bat Ø [mm] | 32 |
Stroke [mm] | 1300 |
Povezava | G 1 /4 |
Piston caps and sliding parts | abrasion-resistant plastic |
