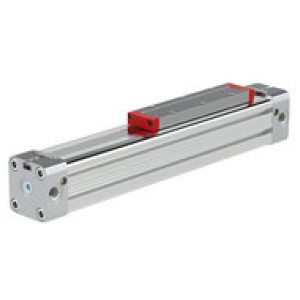

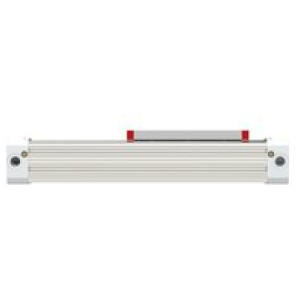

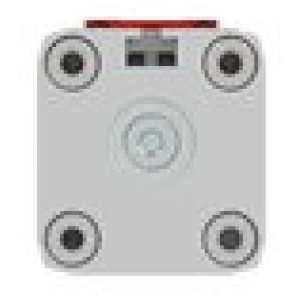

Piston rod-free cylinder ZRL1F, Ø 16, Stroke 640, Standard
SKU: 129878RIE
EAN: 4047322742696
Piston rod-free cylinder ZRL1F, Ø 16, Stroke 640, Standard, Working pressure 0,5 - 8 bar, Temp. -10 to 80 °C
Piston rod-free cylinder in compact design with low carriage. Please refer to our type code in the data-sheet for the available variants and their corresponding type designations for your individual inquiry. Other special designs are also available on request.
Suitable for filtered (50 µm) and unlubricated or lubricated compressed air. Please ensure continuous oiling when using lubricated compressed air.
Povpraševanje
Ffunkcija: double-acting
Magnet: with magnet
Piston caps and sliding parts: abrasion-resistant plastic
Sealing bands: Stainless steel
Tesnilo: Oil proof synthetic material (NBR)
| Šifra | Povezava | Bat Ø [mm] | Stroke [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 129689RIE | G 3/8 | 63 | 100 | Ni na zalogi | ? | Povpraševanje |  |
| 129687RIE | G 1 /4 | 40 | 100 | Ni na zalogi | ? | Povpraševanje | |
| 129688RIE | G 1 /4 | 50 | 100 | Ni na zalogi | ? | Povpraševanje | |
| 129686RIE | G 1 /4 | 32 | 100 | Ni na zalogi | ? | Povpraševanje | |
| 129684RIE | M5 | 16 | 100 | Ni na zalogi | ? | Povpraševanje | |
| 129878RIE | M5 | 16 | 640 | Ni na zalogi | ? | Povpraševanje | |
| 129685RIE | G 1/8 | 25 | 100 | Ni na zalogi | ? | Povpraševanje | |
Opis
Piston rod-free cylinder ZRL1F, Ø 16, Stroke 640, Standard, Working pressure 0,5 - 8 bar, Temp. -10 to 80 °C
Piston rod-free cylinder in compact design with low carriage. Please refer to our type code in the data-sheet for the available variants and their corresponding type designations for your individual inquiry. Other special designs are also available on request.
Suitable for filtered (50 µm) and unlubricated or lubricated compressed air. Please ensure continuous oiling when using lubricated compressed air.
Tehnični podatki in specifikacije
| Magnet | with magnet |
| Ffunkcija | double-acting |
| Cushioning | cushioned |
| Min. delovni tlak [bar] | 0.5 |
| Max. delovni tlak [bar] | 8 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 80 |
| Tesnilo | Oil proof synthetic material (NBR) |
| Sealing bands | Stainless steel |
| Bat Ø [mm] | 16 |
| Stroke [mm] | 640 |
| Povezava | M5 |
| Piston caps and sliding parts | abrasion-resistant plastic |
