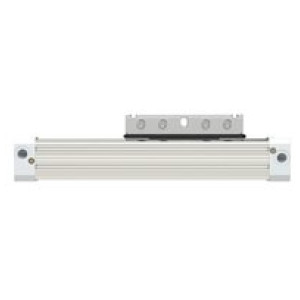

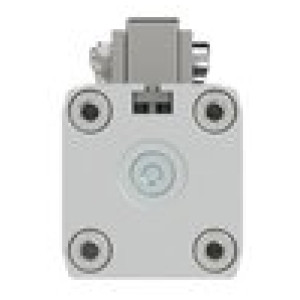

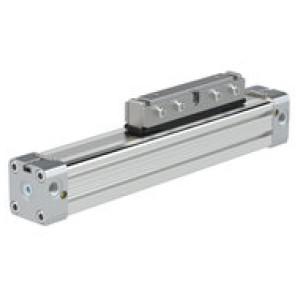

Piston rod-free cylinder ZRL1C, Ø 25, Stroke 100, Standard
SKU: 129681RIE
EAN: 4047322734875
Piston rod-free cylinder ZRL1C, Ø 25, Stroke 100, Standard, Working pressure 0,5 - 8 bar, Temp. -10 to 80 °C
ZRL1C series actuators include piston diameters of 16, 25, 32 and 40 mm with stroke lengths up to 5700 mm. Suitable for filtered (50 µm) and unlubricated or lubricated compressed air. Please ensure continuous oiling when using lubricated compressed air.
Please refer to our type code in the data-sheet for the available variants and their corresponding type designations for your individual inquiry.
Other special designs are also available on request.
After receipt of order, the cylinders will be manufactured individually for you.
Usually, shipment takes place within 5 working days, depending on the number of pieces.
Freight and packaging costs are charged individually and regardless of the value of the goods.
Povpraševanje
Ffunkcija: double-acting
Magnet: with magnet
Piston caps and sliding parts: abrasion-resistant plastic
Povezava: G 1/8
Sealing bands: Stainless steel
Tesnilo: Oil proof synthetic material (NBR)
| Šifra | Povezava | Bat Ø [mm] | Stroke [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 129859RIE | G 1 /4 | 40 | 1600 | Ni na zalogi | ? | Povpraševanje |  |
| 129682RIE | G 1 /4 | 32 | 100 | Ni na zalogi | ? | Povpraševanje | |
| 129680RIE | M5 | 16 | 100 | Ni na zalogi | ? | Povpraševanje | |
| 129681RIE | G 1/8 | 25 | 100 | Ni na zalogi | ? | Povpraševanje | |
| 129683RIE | G 1 /4 | 40 | 100 | Ni na zalogi | ? | Povpraševanje | |
Opis
Piston rod-free cylinder ZRL1C, Ø 25, Stroke 100, Standard, Working pressure 0,5 - 8 bar, Temp. -10 to 80 °C
ZRL1C series actuators include piston diameters of 16, 25, 32 and 40 mm with stroke lengths up to 5700 mm. Suitable for filtered (50 µm) and unlubricated or lubricated compressed air. Please ensure continuous oiling when using lubricated compressed air.
Please refer to our type code in the data-sheet for the available variants and their corresponding type designations for your individual inquiry.
Other special designs are also available on request.
After receipt of order, the cylinders will be manufactured individually for you.
Usually, shipment takes place within 5 working days, depending on the number of pieces.
Freight and packaging costs are charged individually and regardless of the value of the goods.
Tehnični podatki in specifikacije
| Magnet | with magnet |
| Ffunkcija | double-acting |
| Cushioning | cushioned |
| Min. delovni tlak [bar] | 0.5 |
| Max. delovni tlak [bar] | 8 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 80 |
| Tesnilo | Oil proof synthetic material (NBR) |
| Sealing bands | Stainless steel |
| Bat Ø [mm] | 25 |
| Stroke [mm] | 100 |
| Povezava | G 1/8 |
| Piston caps and sliding parts | abrasion-resistant plastic |
