Nav. klik klak M5 , zun. Premer 5
SKU: 108701RIE
EAN: 4047322384803

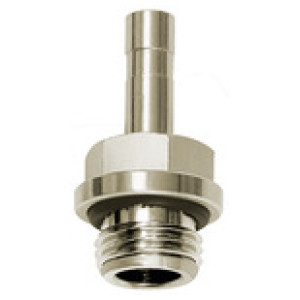

Thread plug nipple »click-clock«, M5 o., for hose exterior Ø 5 mm, Working pressure -0.99 to 16 bar, nickel-plated brass
By combining these parts with unions, union elbows and union tees, you can obtain all essential connecting variants and simultaneously reduce your warehousing costs.
Only recommended for use in combination with quick-connect fittings of the "click-clock" series.
The suitability test for use with other series is the responsibility of the user.
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 108713RIE | G 3/8 | 8 | 17 | 35.4 | Čas dobave: Predvidoma 3 - 5 dni | 2,44 € |  | |
| 108712RIE | G 1/4 | 12 | 14 | 40.7 | Čas dobave: Predvidoma 3 - 5 dni | 2,56 € | | |
| 108719RIE | G 1/2 | 14 | 22 | 48.2 | Čas dobave: Predvidoma 3 - 5 dni | 4,01 € | | |
| 108706RIE | G 1/8 | 8 | 13 | 30.6 | Čas dobave: Predvidoma 3 - 5 dni | 1,46 € | | |
| 108714RIE | G 3/8 | 10 | 17 | 37.1 | Čas dobave: Predvidoma 3 - 5 dni | 3,48 € | | |
| 108711RIE | G 1/4 | 10 | 14 | 37.2 | Čas dobave: Predvidoma 3 - 5 dni | 2,03 € | | |
| 108716RIE | G 3/8 | 14 | 17 | 46.2 | Čas dobave: Predvidoma 3 - 5 dni | 3,54 € | | |
| 108699RIE | M5 | 3 | 5 | 16.8 | Čas dobave: Predvidoma 3 - 5 dni | 1,52 € | | |
| 108702RIE | M5 | 6 | 9 | 25.7 | Čas dobave: Predvidoma 3 - 5 dni | 3,04 € | | |
| 108710RIE | G 1/4 | 8 | 14 | 34.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,71 € | | |
| 108701RIE | M5 | 5 | 8 | 25.2 | Čas dobave: Predvidoma 3 - 5 dni | 2,44 € | | |
| 108705RIE | G 1/8 | 6 | 13 | 29.4 | Čas dobave: Predvidoma 3 - 5 dni | 1,40 € | | |
| 108718RIE | G 1/2 | 12 | 22 | 44.2 | Čas dobave: Predvidoma 3 - 5 dni | 4,39 € | | |
| 108704RIE | G 1/8 | 5 | 13 | 28.9 | Čas dobave: Predvidoma 3 - 5 dni | 2,44 € | | |
| 108707RIE | G 1/4 | 4 | 14 | 32.4 | Čas dobave: Predvidoma 3 - 5 dni | 1,71 € | | |
| 108715RIE | G 3/8 | 12 | 17 | 42.2 | Čas dobave: Predvidoma 3 - 5 dni | 3,96 € | | |
| 108703RIE | G 1/8 | 4 | 13 | 28.9 | Čas dobave: Predvidoma 3 - 5 dni | 1,52 € | | |
| 108708RIE | G 1/4 | 5 | 14 | 32.4 | Čas dobave: Predvidoma 3 - 5 dni | 3,37 € | | |
| 108717RIE | G 1/2 | 10 | 19 | 41.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,27 € | | |
| 108709RIE | G 1/4 | 6 | 14 | 32.9 | Čas dobave: Predvidoma 3 - 5 dni | 1,65 € | | |
| 108700RIE | M5 | 4 | 8 | 25.2 | Čas dobave: Predvidoma 3 - 5 dni | 1,52 € | |
Opis
Thread plug nipple »click-clock«, M5 o., for hose exterior Ø 5 mm, Working pressure -0.99 to 16 bar, nickel-plated brass
By combining these parts with unions, union elbows and union tees, you can obtain all essential connecting variants and simultaneously reduce your warehousing costs.
Only recommended for use in combination with quick-connect fittings of the "click-clock" series.
The suitability test for use with other series is the responsibility of the user.
Tehnični podatki in specifikacije
| Serija | click-clock |
| Min. delovni tlak [bar] | -0.99 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 80 |
| Vpenjalni obroč | Stainless steel |
| Navoj | M5 |
| Za cevi O.D. [mm] | 5 |

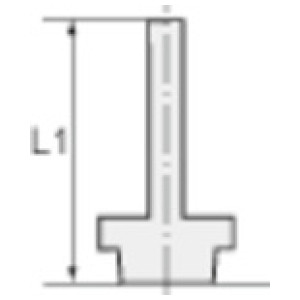

| L1 [mm] | 25.2 |
| a/f [mm] | 8 |
| Material | Nickel-plated brass |
