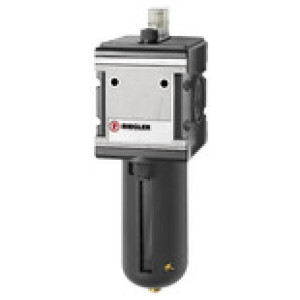

Naoljevalnik »multifix«PC zbir.Protec. cageVel. 4G 1
SKU: 133120RIE
EAN: 4047322476096
Mist oiler »multifix«, PC container and protective cage, Size 4, G 1, Input pressure max. 16 bar, Med. / ambient temp. max. 60 °C
Proportional lubricators, oil can be filled under pressure.
![leanpay logo](https://www.karcher-trg.si/templates/default/images/brands/leanpay.png)
Obrestno financiranje
- 16,00 € x 12 mesecev
- 31,30 € x 6 mesecev
- 61,91 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

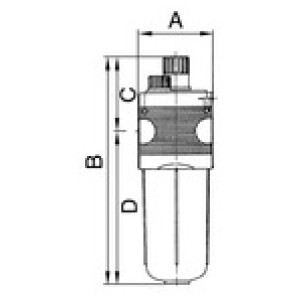

Šifra | Navoj | Ohišje | Velikost | DN | C [mm] | A [mm] | D [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
100560RIE | G 1 | Aluminium | 5 | 25 | 82.7 | 100.0 | 241.6 | 324.3 | 19000 | Čas dobave: Predvidoma 3 - 5 dni | 232,02 € | | |
100556RIE | G 1/4 | Die-cast zinc | 1 | 6 | 58.0 | 47.8 | 109.8 | 167.8 | 1900 | Čas dobave: Predvidoma 3 - 5 dni | 64,53 € | | |
100557RIE | G 3/8 | Die-cast zinc | 1 | 10 | 58.0 | 47.8 | 109.8 | 167.8 | 1900 | Čas dobave: Predvidoma 3 - 5 dni | 64,53 € | | |
133120RIE | G 1 | Die-cast aluminium | 4 | 25 | 86.0 | 85.0 | 182.0 | 268.0 | 14000 | Čas dobave: Predvidoma 3 - 5 dni | 170,76 € | | |
100559RIE | G 3/4 | Die-cast zinc | 3 | 20 | 66.1 | 68.8 | 132.5 | 198.6 | 5000 | Čas dobave: Predvidoma 3 - 5 dni | 95,92 € | | |
100558RIE | G 1/2 | Die-cast zinc | 3 | 15 | 66.1 | 68.8 | 132.5 | 198.6 | 5000 | Čas dobave: Predvidoma 3 - 5 dni | 95,92 € | | |
133119RIE | G 3/4 | Die-cast aluminium | 4 | 20 | 86.0 | 85.0 | 182.0 | 268.0 | 14000 | Čas dobave: Predvidoma 3 - 5 dni | 170,76 € | |
Opis
Mist oiler »multifix«, PC container and protective cage, Size 4, G 1, Input pressure max. 16 bar, Med. / ambient temp. max. 60 °C
Proportional lubricators, oil can be filled under pressure.
Tehnični podatki in specifikacije
Navoj | G 1 |
Max. vhodni tlak [bar] | 16 |
Velikost | 4 |
Tesnilo | NBR |
Max. temperatura medija [°C] | 60 |
Max. sobna temperatura [°C] | 60 |
Pretok [l/min] | 14000 |
DN | 25 |
Ohišje | Die-cast aluminium |
Vidna kupola | PA |
Posoda | Polycarbonate container with protective cage |
A [mm] | 85.0 |
B [mm] | 268.0 |
C [mm] | 86.0 |
D [mm] | 182.0 |
Serija | multifix |
Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 1 bar |
Razred olja | CL 32 acc. to DIN 51517-ISO VG 32 |
