Multi-dist., 8 mm Blue serija" 4-stransko
SKU: 109913RIE
EAN: 4047322389617

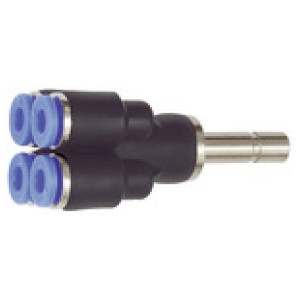

Multi-distributor, Plug nipple 8 mm »Blue Series« 4-fold, for hose exterior Ø 4x6 mm, pmax short term 15barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
9,72 €
| Šifra | Za cevi O.D. [mm] | Priključek [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 109913RIE | 4x6 | 8 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,72 € |  | |
| 109912RIE | 4x4 | 6 | 53.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,64 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Za cevi O.D. [mm] | 4x6 |

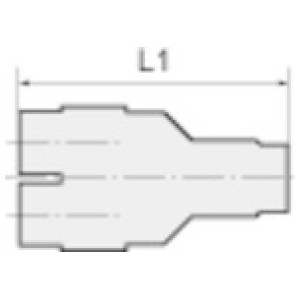

| L1 [mm] | 58.0 |
| Priključek [mm] | 8 |
| Material | Plastic and nickel-plated brass |
