* slike so simbolične

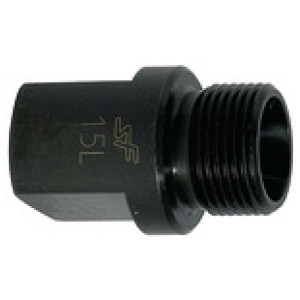

Montažni nastavek za konični nastavek iz nerjavnega jekla
SKU: 112515RIE
EAN: 4047322169110
Pre-assembly supports for stainless steel cutting ring fitting, M12x1.5, Pipe exterior Ø 6 mm, AF 12, PN max. 315 bar
When stainless steel pipes are assembled, they must always be pre-assembled in a hardened pre-assembly adapter. They must never be assembled directly in the stainless steel adapter. The cones of the pre-assembly adapters are susceptible to wear and must therefore be inspected at regular intervals to check that they are still true to gauge.
We recommend using only seamless, soft-annealed, stainless steel pipes made of
1.4571 according to DIN 2391 Part 1 or DIN 2462, tolerance class D4/T3.

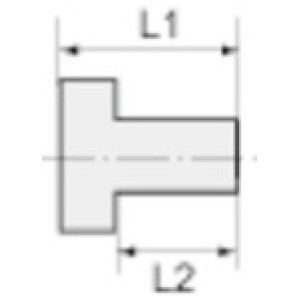

| Šifra | Navoj | O.D. cev [mm] | L2 [mm] | a/f [mm] | L1 [mm] | PN [bar] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 112518RIE | M18x1.5 | 12 | 15.0 | 17 | 40.0 | 315 | Čas dobave: Predvidoma 3 - 5 dni | 37,76 € |  | |
| 112520RIE | M26x1.5 | 18 | 15.0 | 22 | 45.0 | 315 | Čas dobave: Predvidoma 3 - 5 dni | 53,00 € | | |
| 112512RIE | M8x1.0 | 4 | 8.0 | 10 | 25.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 28,68 € | | |
| 112517RIE | M16x1.5 | 10 | 15.0 | 17 | 40.0 | 315 | Čas dobave: Predvidoma 3 - 5 dni | 37,76 € | | |
| 112521RIE | M30x2.0 | 22 | 20.0 | 24 | 50.0 | 315 | Čas dobave: Predvidoma 3 - 5 dni | 75,02 € | | |
| 112515RIE | M12x1.5 | 6 | 15.0 | 12 | 35.0 | 315 | Čas dobave: Predvidoma 3 - 5 dni | 35,50 € | | |
| 112516RIE | M14x1.5 | 8 | 15.0 | 12 | 36.0 | 315 | Čas dobave: Predvidoma 3 - 5 dni | 35,50 € | | |
| 112513RIE | M10x1.0 | 6 | 8.0 | 10 | 25.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 28,68 € | | |
| 112519RIE | M22x1.5 | 15 | 15.0 | 19 | 42.0 | 315 | Čas dobave: Predvidoma 3 - 5 dni | 43,10 € | | |
| 112514RIE | M12x1.0 | 8 | 9.0 | 12 | 26.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 31,77 € | |
Opis
Pre-assembly supports for stainless steel cutting ring fitting, M12x1.5, Pipe exterior Ø 6 mm, AF 12, PN max. 315 bar
When stainless steel pipes are assembled, they must always be pre-assembled in a hardened pre-assembly adapter. They must never be assembled directly in the stainless steel adapter. The cones of the pre-assembly adapters are susceptible to wear and must therefore be inspected at regular intervals to check that they are still true to gauge.
We recommend using only seamless, soft-annealed, stainless steel pipes made of
1.4571 according to DIN 2391 Part 1 or DIN 2462, tolerance class D4/T3.
Tehnični podatki in specifikacije
| Navoj | M12x1.5 |
| L1 [mm] | 35.0 |
| L2 [mm] | 15.0 |
| a/f [mm] | 12 |
| PN [bar] | 315 |
| O.D. cev [mm] | 6 |
