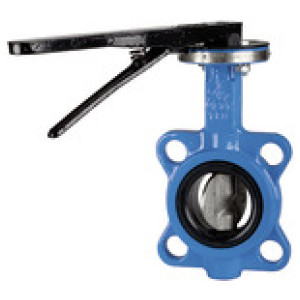

Medprirobnični zaporni ventil, Z ročico, ročni, DN 65
SKU: 103683RIE
EAN: 4047322338868
Intermediate flange blocking flap, Manual lever, Operating temperature -15 °C to 120 °C, DN 65, PN max. 16 bar
Butterfly valves with hand lever suitable for water/steam, seawater, salt water, ester, ketones, alkalis, caustic soda, sodium hydroxide.
Not recommended for hydrocarbons, oils or greases.
Obrestno financiranje
- 15,72 € x 12 mesecev
- 30,75 € x 6 mesecev
- 60,82 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

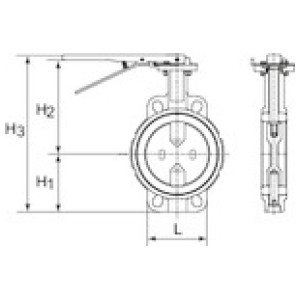

| Šifra | B [mm] | DN | H1 [mm] | H2 [mm] | L [mm] | H3 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 103681RIE | 38.0 | 40 | 68.0 | 94.0 | 94.0 | 198.0 | Čas dobave: Predvidoma 3 - 5 dni | 158,15 € |  | |
| 103684RIE | 47.0 | 80 | 89.0 | 162.0 | 127.0 | 273.0 | Čas dobave: Predvidoma 3 - 5 dni | 192,66 € | | |
| 103685RIE | 56.0 | 100 | 102.0 | 178.0 | 163.0 | 302.0 | Čas dobave: Predvidoma 3 - 5 dni | 235,28 € | | |
| 103683RIE | 49.0 | 65 | 78.0 | 155.0 | 115.0 | 255.0 | Čas dobave: Predvidoma 3 - 5 dni | 168,04 € | | |
| 103686RIE | 59.0 | 125 | 123.0 | 191.0 | 190.0 | 336.0 | Čas dobave: Predvidoma 3 - 5 dni | 316,63 € | | |
| 103687RIE | 59.0 | 150 | 138.0 | 205.0 | 216.0 | 365.0 | Čas dobave: Predvidoma 3 - 5 dni | 416,30 € | | |
| 103682RIE | 47.0 | 50 | 71.0 | 143.0 | 100.0 | 236.0 | Čas dobave: Predvidoma 3 - 5 dni | 166,58 € | |
Opis
Intermediate flange blocking flap, Manual lever, Operating temperature -15 °C to 120 °C, DN 65, PN max. 16 bar
Butterfly valves with hand lever suitable for water/steam, seawater, salt water, ester, ketones, alkalis, caustic soda, sodium hydroxide.
Not recommended for hydrocarbons, oils or greases.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -15 |
| Max. delovna temperatura [°C] | 120 |
| Ohišje | Grey cast iron GG25 epoxy resin coated, color RAL 5015 |
| Gred | SS416 |
| Gred izbirnika | SS416 |
| DN | 65 |
| Disc | Stainless steel CF8M/1.4404 |
| Tesnilo gredi izbirnika | EPDM |
| Tesnilo | EPDM |
| Ročica | GG25 epoxy resin coated |
| B [mm] | 49.0 |
| H1 [mm] | 78.0 |
| H2 [mm] | 155.0 |
| H3 [mm] | 255.0 |
| L [mm] | 115.0 |
