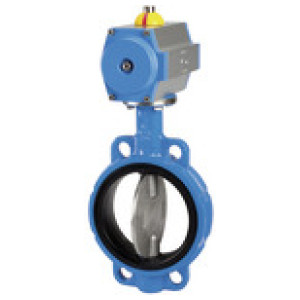

Medprirobnični zaporni ventil, Pneum. vklop, DN 150
SKU: 103680RIE
EAN: 4047322339001
Intermediate flange blocking flap, Pneumat. actuation drive, single-acting, Operating temp. -15°C to 120°C, DN 150, PN max. 16 bar
Butterfly valves with pneumatic actuator. Pneumatic actuators, double- or single acting version.
For water/steam, seawater, salt water, ester, ketones, alkalis, caustic soda, sodium hydroxide.
Not recommended for hydrocarbons, oils or greases.
Obrestno financiranje
- 100 € + 35,23 € x 48 mesecev
- 100 € + 45,02 € x 36 mesecev
- 100 € + 64,67 € x 24 mesecev
- 100 € + 123,80 € x 12 mesecev
- 100 € + 242,17 € x 6 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

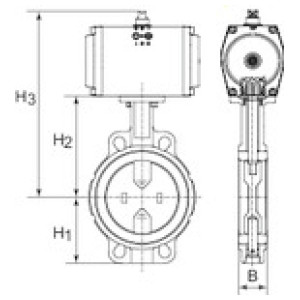

| Šifra | B [mm] | DN | H1 [mm] | L [mm] | H2 [mm] | H3 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 103676RIE | 49.0 | 65 | 78.0 | 115.0 | 155.0 | 285.0 | Čas dobave: Predvidoma 3 - 5 dni | 533,27 € |  | |
| 103678RIE | 56.0 | 100 | 102.0 | 163.0 | 178.0 | 348.0 | Čas dobave: Predvidoma 3 - 5 dni | 869,97 € | | |
| 103680RIE | 59.0 | 150 | 138.0 | 216.0 | 265.0 | 395.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.322,71 € | | |
| 103674RIE | 38.0 | 40 | 68.0 | 94.0 | 108.0 | 238.0 | Čas dobave: Predvidoma 3 - 5 dni | 464,87 € | | |
| 103677RIE | 47.0 | 80 | 89.0 | 127.0 | 162.0 | 292.0 | Čas dobave: Predvidoma 3 - 5 dni | 629,19 € | | |
| 103679RIE | 59.0 | 125 | 123.0 | 190.0 | 191.0 | 361.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.052,26 € | | |
| 103675RIE | 47.0 | 50 | 71.0 | 100.0 | 143.0 | 273.0 | Čas dobave: Predvidoma 3 - 5 dni | 467,15 € | |
Opis
Intermediate flange blocking flap, Pneumat. actuation drive, single-acting, Operating temp. -15°C to 120°C, DN 150, PN max. 16 bar
Butterfly valves with pneumatic actuator. Pneumatic actuators, double- or single acting version.
For water/steam, seawater, salt water, ester, ketones, alkalis, caustic soda, sodium hydroxide.
Not recommended for hydrocarbons, oils or greases.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -15 |
| Max. delovna temperatura [°C] | 120 |
| Min. vodeni tlak [bar] | 5 |
| Max. vodeni tlak [bar] | 5.5 |
| Ohišje | Grey cast iron GG25 epoxy resin coated, RAL 5015 color |
| Gred izbirnika | SS416 |
| DN | 150 |
| Disc | Stainless steel CF8M/1.4404 |
| Tesnilo gredi izbirnika | EPDM |
| Tesnilo | EPDM |
| Premaz za pogon | NBR |
| Različica | single-acting - spring to close |
| Pogonski material | Anodised aluminium |
| Kot vrtenja [°] | 90 |
| Adapter ventila | Supplied as standard, operated by a 3/2- or 5/2-way valve |
| B [mm] | 59.0 |
| H1 [mm] | 138.0 |
| H2 [mm] | 265.0 |
| H3 [mm] | 395.0 |
| L [mm] | 216.0 |
