* slike so simbolične

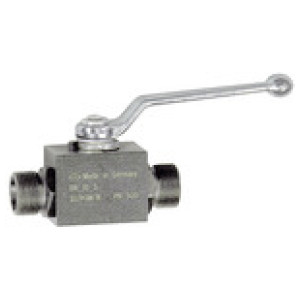

krogelni ventil, visoki tlak, težka izvedba, M30x2
SKU: 103511RIE
EAN: 4047322081917
Ball valve, High pressure design, Heavy-duty series, Steel, Operating temp. -10 °C to 100 °C, M30x2, DN 16, PN max. 420 bar
For liquid and lubricating media.
Available versions:
- For solderless tube fittings acc. to DIN 2353, lightweight series acc. to ISO 8434-1.
- For solderless tube fittings acc. to DIN 2353, heavy-duty series acc. to ISO 8434-1.
- With female pipe thread acc. to DIN ISO 228-1 (BSP).
Obrestno financiranje
- 13,00 € x 6 mesecev
- 25,71 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

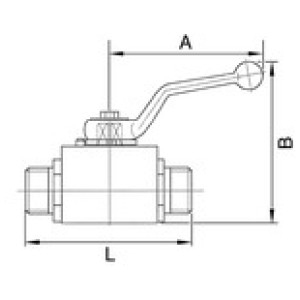

| Šifra | Navoj | DN | O.D. za cevi [mm] | L [mm] | B [mm] | A [mm] | Max. obratovalni tlak [bar] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 103513RIE | M42x2 | 25 | 30S | 120.0 | 128.0 | 187.0 | 420 | Čas dobave: Predvidoma 3 - 5 dni | 106,46 € |  | |
| 103506RIE | M16x1.5 | 4 | 8S | 73.0 | 55.0 | 76.0 | 500 | Čas dobave: Predvidoma 3 - 5 dni | 34,54 € | | |
| 103511RIE | M30x2 | 16 | 20S | 90.0 | 105.0 | 166.0 | 420 | Čas dobave: Predvidoma 3 - 5 dni | 70,93 € | | |
| 103512RIE | M36x2 | 20 | 25S | 107.0 | 121.0 | 187.0 | 420 | Čas dobave: Predvidoma 3 - 5 dni | 82,45 € | | |
| 103510RIE | M24x1.5 | 12 | 16S | 87.0 | 92.0 | 112.0 | 500 | Čas dobave: Predvidoma 3 - 5 dni | 43,71 € | | |
| 103508RIE | M20x1.5 | 8 | 12S | 77.0 | 68.0 | 100.0 | 500 | Čas dobave: Predvidoma 3 - 5 dni | 37,71 € | | |
| 103509RIE | M22x1.5 | 10 | 14S | 81.0 | 68.0 | 100.0 | 500 | Čas dobave: Predvidoma 3 - 5 dni | 39,72 € | | |
| 103507RIE | M18x1.5 | 6 | 10S | 73.0 | 55.0 | 76.0 | 500 | Čas dobave: Predvidoma 3 - 5 dni | 36,56 € | |
Opis
Ball valve, High pressure design, Heavy-duty series, Steel, Operating temp. -10 °C to 100 °C, M30x2, DN 16, PN max. 420 bar
For liquid and lubricating media.
Available versions:
- For solderless tube fittings acc. to DIN 2353, lightweight series acc. to ISO 8434-1.
- For solderless tube fittings acc. to DIN 2353, heavy-duty series acc. to ISO 8434-1.
- With female pipe thread acc. to DIN ISO 228-1 (BSP).
Tehnični podatki in specifikacije
| Ohišje | Steel |
| Max. obratovalni tlak [bar] | 420 |
| Min. delovna temperatura [°C] | -10 |
| Max. delovna temperatura [°C] | 100 |
| Navoj | M30x2 |
| DN | 16 |
| O.D. za cevi [mm] | 20S |
| Krogla | Hard-chrome plated steel |
| Gred izbirnika | Steel |
| Tesnilo gredi izbirnika | NBR |
| Kontrolno kroglično tesnilo | POM |
| Bore inball | Full bore |
| A [mm] | 166.0 |
| L [mm] | 90.0 |
| B [mm] | 105.0 |
