* slike so simbolične

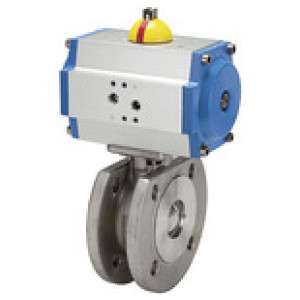

krogelni ventil s prirobnico, Pneumat. vklop, DN 15
SKU: 103638RIE
EAN: 4047322075237
Compact flange ball valve, Pneumat. actuation drive, double-acting, Stainless steel, Operating temp. -10°C to 200°C, PN max 40 bar
2-way ball valves compact flange type, full bore.
Pneumatic actuators, double- or single acting version and integrated end-position feedback.
Obrestno financiranje
- 11,96 € x 48 mesecev
- 15,28 € x 36 mesecev
- 21,95 € x 24 mesecev
- 42,02 € x 12 mesecev
- 82,19 € x 6 mesecev
- 162,55 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

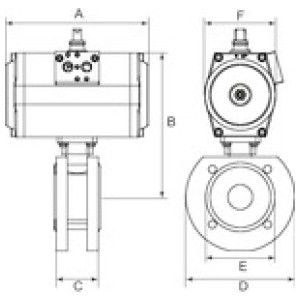

Šifra | PN [bar] | DN | C [mm] | F [mm] | E [mm] | D [mm] | A [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|---|---|
103643RIE | 40 | 50 | 78.0 | 92.5 | 102.0 | 155.0 | 161.0 | 185.5 | Čas dobave: Predvidoma 3 - 5 dni | 804,19 € | ||
103646RIE | 16 | 100 | 152.0 | 120.0 | 158.0 | 220.0 | 221.0 | 272.0 | Čas dobave: Predvidoma 3 - 5 dni | 2.012,01 € | ||
103638RIE | 40 | 15 | 40.0 | 61.5 | 45.0 | 95.0 | 116.0 | 125.0 | Čas dobave: Predvidoma 3 - 5 dni | 448,67 € | ||
103640RIE | 40 | 25 | 53.0 | 68.5 | 68.0 | 115.0 | 133.0 | 138.6 | Čas dobave: Predvidoma 3 - 5 dni | 515,91 € | ||
103641RIE | 40 | 32 | 58.4 | 80.0 | 78.0 | 135.0 | 137.0 | 158.2 | Čas dobave: Predvidoma 3 - 5 dni | 664,35 € | ||
103642RIE | 40 | 40 | 62.0 | 92.5 | 88.0 | 145.0 | 161.0 | 176.3 | Čas dobave: Predvidoma 3 - 5 dni | 759,97 € | ||
103645RIE | 16 | 80 | 120.0 | 110.5 | 138.0 | 200.0 | 209.0 | 240.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.550,71 € | ||
103644RIE | 16 | 65 | 100.0 | 92.5 | 122.0 | 185.0 | 180.0 | 205.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.313,79 € | ||
103639RIE | 40 | 20 | 44.0 | 61.5 | 58.0 | 105.0 | 116.0 | 129.3 | Čas dobave: Predvidoma 3 - 5 dni | 474,12 € |
Opis
Compact flange ball valve, Pneumat. actuation drive, double-acting, Stainless steel, Operating temp. -10°C to 200°C, PN max 40 bar
2-way ball valves compact flange type, full bore.
Pneumatic actuators, double- or single acting version and integrated end-position feedback.
Tehnični podatki in specifikacije
Pogonski material | Anodised aluminium |
Material krogelnega ventila | Stainless steel1.4408, with ISO flange |
Premaz za krogelni ventil | PTFE |
Premaz za pogon | NBR |
Max. vodeni tlak [bar] | 5.5 |
Kot vrtenja [°] | 90 |
Adapter ventila | Acc. to NAMUR |
Delovna temperatura | -10 °C to 200 °C (depending on the operating pressure) |
DN | 15 |
Različica | double-acting |
B [mm] | 125.0 |
A [mm] | 116.0 |
D [mm] | 95.0 |
PN [bar] | 40 |
F [mm] | 61.5 |
C [mm] | 40.0 |
E [mm] | 45.0 |
