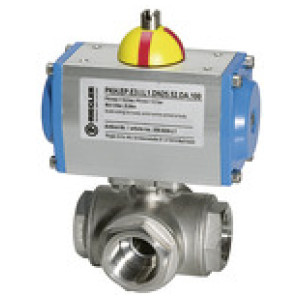

krogelni ventil nerjavno jeklo, Pneumat. vklop, L-izpust
SKU: 103625RIE
EAN: 4047322077019
3-way stainless steel ball valve, Pneumat. actuation drive, L-hole, Operating temp. -20°C to 70°C, Rp 2, DN 50, PN max. 63 bar
3-way cock, reduced bore.
Pneumatic actuators, double- or single acting version and integrated end-position feedback.
Standardised interfaces:
Actuator/valve interface: Four or eight female threads in the actuator housing acc. to EN ISO 5211.
Actuator/control valve interface: Acc. to NAMUR or VDI/VDE 3845.
Actuator/signalling device interface: Acc. to VDI/VDE 3845 (NAMUR).
Obrestno financiranje
- 100 € + 40,17 € x 48 mesecev
- 100 € + 51,50 € x 36 mesecev
- 100 € + 74,25 € x 24 mesecev
- 100 € + 142,63 € x 12 mesecev
- 100 € + 279,52 € x 6 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

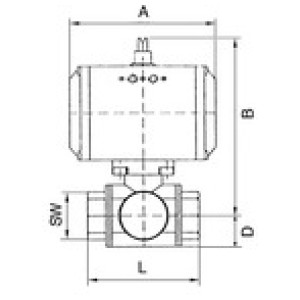

| Šifra | Navoj | D [mm] | DN | a/f [mm] | L [mm] | A [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 103625RIE | Rp 2 | 47.5 | 50 | 71 | 115.0 | 209.0 | 213.5 | Čas dobave: Predvidoma 3 - 5 dni | 1.566,89 € |  | |
| 103624RIE | Rp 1 1/2 | 37.0 | 40 | 55 | 105.0 | 180.0 | 185.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.178,52 € | | |
| 103621RIE | Rp 3/4 | 23.0 | 20 | 32 | 80.0 | 137.0 | 159.0 | Čas dobave: Predvidoma 3 - 5 dni | 633,57 € | | |
| 103623RIE | Rp 1 1/4 | 36.5 | 32 | 50 | 90.0 | 161.0 | 179.5 | Čas dobave: Predvidoma 3 - 5 dni | 1.032,66 € | | |
| 103622RIE | Rp 1 | 28.5 | 25 | 41 | 90.0 | 161.0 | 174.5 | Čas dobave: Predvidoma 3 - 5 dni | 789,77 € | | |
| 103620RIE | Rp 1/2 | 20.0 | 15 | 27 | 73.0 | 133.0 | 139.0 | Čas dobave: Predvidoma 3 - 5 dni | 543,33 € | |
Opis
3-way stainless steel ball valve, Pneumat. actuation drive, L-hole, Operating temp. -20°C to 70°C, Rp 2, DN 50, PN max. 63 bar
3-way cock, reduced bore.
Pneumatic actuators, double- or single acting version and integrated end-position feedback.
Standardised interfaces:
Actuator/valve interface: Four or eight female threads in the actuator housing acc. to EN ISO 5211.
Actuator/control valve interface: Acc. to NAMUR or VDI/VDE 3845.
Actuator/signalling device interface: Acc. to VDI/VDE 3845 (NAMUR).
Tehnični podatki in specifikacije
| Pogonski material | Anodised aluminium |
| Max. vodeni tlak aktuatorja [bar] | 10 |
| Priporočeni vodeni tlak [bar] | 5.5 |
| Max. obratovalni tlak [bar] | 63 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 70 |
| Material krogelnega ventila | Stainless steel 1.4401, with ISO flange plate |
| Premaz za krogelni ventil | PTFE / FKM |
| Premaz za pogon | NBR |
| Kot vrtenja [°] | 90 |
| Adapter ventila | Acc. to NAMUR |
| Navoj | Rp 2 |
| DN | 50 |
| Različica | single-acting |
| Položaj | L 2 |
| B [mm] | 213.5 |
| L [mm] | 115.0 |
| A [mm] | 209.0 |
| D [mm] | 47.5 |
| a/f [mm] | 71 |
