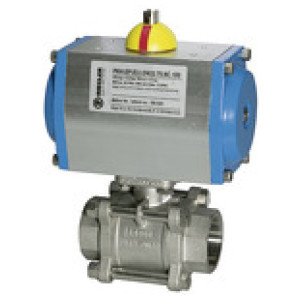

krogelni ventil nerjavno jeklo, Pneumat. vklop, Rp 2
SKU: 103602RIE
EAN: 4047322076548
2-way stainless steel ball valve, Pneumat. actuation drive, double-acting, Operating temp. -20 °C to 70 °C, Rp 2, PN max. 63 bar
2-way cock, 3-piece, full bore.
Pneumatic actuators, double- or single acting version and integrated end-position feedback.
Standardised interfaces:
Actuator/valve interface: Four or eight female threads in the actuator housing acc. to EN ISO 5211.
Actuator/control valve interface: Acc. to NAMUR or VDI/VDE 3845.
Actuator/signalling device interface: Acc. to VDI/VDE 3845 (NAMUR).
Obrestno financiranje
- 20,10 € x 48 mesecev
- 25,69 € x 36 mesecev
- 36,91 € x 24 mesecev
- 70,65 € x 12 mesecev
- 138,20 € x 6 mesecev
- 273,34 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

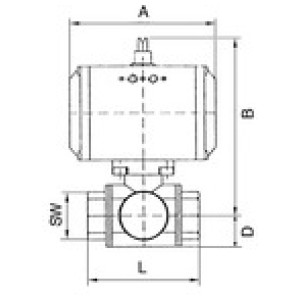

| Šifra | Navoj | DN | D [mm] | a/f [mm] | L [mm] | A [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 103598RIE | Rp 3/4 | 20 | 27.0 | 35 | 80.0 | 116.0 | 139.0 | Čas dobave: Predvidoma 3 - 5 dni | 340,45 € |  | |
| 103597RIE | Rp 3/4 | 20 | 27.0 | 35 | 80.0 | 133.0 | 148.0 | Čas dobave: Predvidoma 3 - 5 dni | 395,87 € | | |
| 103602RIE | Rp 2 | 50 | 50.0 | 74 | 140.0 | 161.0 | 207.0 | Čas dobave: Predvidoma 3 - 5 dni | 754,95 € | | |
| 103596RIE | Rp 1/2 | 15 | 24.0 | 29 | 75.0 | 116.0 | 135.0 | Čas dobave: Predvidoma 3 - 5 dni | 318,71 € | | |
| 103603RIE | Rp 2 1/2 | 65 | 60.0 | 89 | 185.0 | 180.0 | 238.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.312,34 € | | |
| 103601RIE | Rp 1 1/2 | 40 | 40.0 | 58 | 120.0 | 137.0 | 186.0 | Čas dobave: Predvidoma 3 - 5 dni | 660,47 € | | |
| 103604RIE | Rp 3 | 80 | 82.0 | 104 | 205.0 | 209.0 | 257.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.682,45 € | | |
| 103599RIE | Rp 1 | 25 | 30.0 | 41 | 90.0 | 133.0 | 157.0 | Čas dobave: Predvidoma 3 - 5 dni | 483,02 € | | |
| 103595RIE | Rp 1/2 | 15 | 24.0 | 29 | 75.0 | 133.0 | 144.0 | Čas dobave: Predvidoma 3 - 5 dni | 372,84 € | | |
| 103600RIE | Rp 1 1/4 | 32 | 37.0 | 50 | 110.0 | 137.0 | 176.0 | Čas dobave: Predvidoma 3 - 5 dni | 577,35 € | |
Opis
2-way stainless steel ball valve, Pneumat. actuation drive, double-acting, Operating temp. -20 °C to 70 °C, Rp 2, PN max. 63 bar
2-way cock, 3-piece, full bore.
Pneumatic actuators, double- or single acting version and integrated end-position feedback.
Standardised interfaces:
Actuator/valve interface: Four or eight female threads in the actuator housing acc. to EN ISO 5211.
Actuator/control valve interface: Acc. to NAMUR or VDI/VDE 3845.
Actuator/signalling device interface: Acc. to VDI/VDE 3845 (NAMUR).
Tehnični podatki in specifikacije
| Pogonski material | Anodised aluminium |
| Max. vodeni tlak aktuatorja [bar] | 10 |
| Priporočeni vodeni tlak [bar] | 5.5 |
| Max. obratovalni tlak [bar] | 63 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 70 |
| Material krogelnega ventila | Stainless steel 1.4401, with ISO flange plate |
| Premaz za krogelni ventil | PTFE |
| Premaz za pogon | NBR |
| Kot vrtenja [°] | 90 |
| Adapter ventila | Acc. to NAMUR |
| Navoj | Rp 2 |
| DN | 50 |
| Različica | double-acting |
| B [mm] | 207.0 |
| L [mm] | 140.0 |
| A [mm] | 161.0 |
| D [mm] | 50.0 |
| a/f [mm] | 74 |
