* slike so simbolične

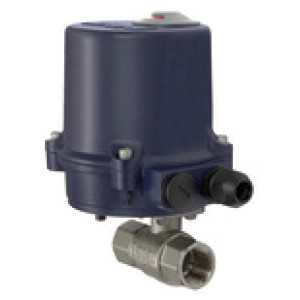

krogelni ventil medenina, električni vklop, 230 V AC, 50 Hz, Rp 1
SKU: 103696RIE
EAN: 4047322339186
Brass ball valve, Electr. actuation drive, 230 V AC, 50 Hz, Operating temperature -20 °C to 70 °C, Rp 1, DN 25, PN max. 40 bar
Voltage range 230 VAC, 50 Hz or 24 VDC.
2-way cock, full bore, for neutral gases and liquids.
Reversible electric rotary actuator.
![leanpay logo](https://www.karcher-trg.si/templates/default/images/brands/leanpay.png)
Obrestno financiranje
- 21,33 € x 48 mesecev
- 27,25 € x 36 mesecev
- 39,16 € x 24 mesecev
- 74,95 € x 12 mesecev
- 146,62 € x 6 mesecev
- 289,99 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

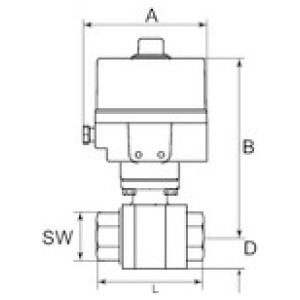

Šifra | Navoj | PN [bar] | D [mm] | DN | a/f [mm] | L [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|---|
103698RIE | Rp 1 1/2 | 25 | 36.0 | 40 | 55 | 120.0 | 188.0 | Čas dobave: Predvidoma 3 - 5 dni | 868,37 € | | |
103697RIE | Rp 1 1/4 | 40 | 30.0 | 32 | 50 | 110.0 | 181.5 | Čas dobave: Predvidoma 3 - 5 dni | 839,52 € | | |
103696RIE | Rp 1 | 40 | 25.0 | 25 | 41 | 90.0 | 170.5 | Čas dobave: Predvidoma 3 - 5 dni | 801,44 € | | |
103699RIE | Rp 2 | 25 | 44.0 | 50 | 70 | 140.0 | 199.5 | Čas dobave: Predvidoma 3 - 5 dni | 936,24 € | | |
103695RIE | Rp 3/4 | 40 | 20.0 | 20 | 32 | 80.0 | 167.0 | Čas dobave: Predvidoma 3 - 5 dni | 786,88 € | | |
103694RIE | Rp 1/2 | 40 | 17.0 | 15 | 26 | 75.0 | 164.5 | Čas dobave: Predvidoma 3 - 5 dni | 784,41 € | |
Opis
Brass ball valve, Electr. actuation drive, 230 V AC, 50 Hz, Operating temperature -20 °C to 70 °C, Rp 1, DN 25, PN max. 40 bar
Voltage range 230 VAC, 50 Hz or 24 VDC.
2-way cock, full bore, for neutral gases and liquids.
Reversible electric rotary actuator.
Tehnični podatki in specifikacije
Ohišje | Aluminium powder-coated |
Min. delovna temperatura [°C] | -20 |
Max. delovna temperatura [°C] | 70 |
Material | Nickel-plated brass |
Indikator položaja | Manually operated |
Krogelno tesnilo | PTFE, glass fibre-reinforced |
Tesnilo gredi izbirnika | FKM |
Min. sobna temperatura [°C] | -30 |
Max. sobna temperatura [°C] | 70 |
Delovni cikel [%] | 30 |
IP zaščita | IP 68 |
Relativna vlažnost | 30 % to 95 % |
Montažna prirobnica | ISO 5211 |
Krogla | Hard chrome-plated brass |
Gred izbirnika | Hard chrome-plated brass |
Navoj | Rp 1 |
DN | 25 |
Napetost | 230 VAC, 50 Hz |
L [mm] | 90.0 |
A [mm] | 153.0 |
D [mm] | 25.0 |
B [mm] | 170.5 |
a/f [mm] | 41 |
PN [bar] | 40 |
Čas aktivacije [sec.] | 15 |
