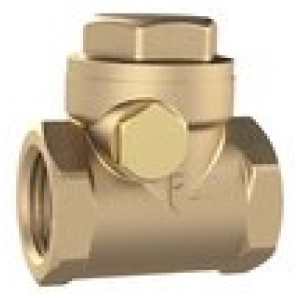

Kont. ventil, DN 50, med., mehko tesnenje, G 2, PN max. 10 bar
SKU: 158086RIE
EAN: 4047322631709
Check valve, DN 50, Brass, Soft sealed, Operating temperature 0 °C to 90 °C, G 2, PN max. 10 bar
Applications: Water (no steam), neutral and non-corrosive liquid media, mineral oils.
Only suitable for liquid media. Flap valve closes by gravity, therefore only possible to be installed horizontally!
Obrestno financiranje
- 15,19 € x 6 mesecev
- 30,05 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

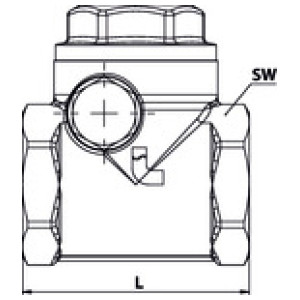

| Šifra | Navoj | Max. obratovalni tlak [bar] | DN | a/f [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 158086RIE | G 2 | 10 | 50 | 69 | 94.0 | Čas dobave: Predvidoma 3 - 5 dni | 82,52 € |  | |
| 158084RIE | G 1 1/4 | 10 | 32 | 50 | 72.0 | Čas dobave: Predvidoma 3 - 5 dni | 45,24 € | | |
| 158088RIE | G 3/8 | 16 | 10 | 27 | 43.0 | Čas dobave: Predvidoma 3 - 5 dni | 16,26 € | | |
| 158081RIE | G 1/2 | 16 | 15 | 27 | 43.0 | Čas dobave: Predvidoma 3 - 5 dni | 14,99 € | | |
| 158082RIE | G 3/4 | 16 | 20 | 34 | 52.0 | Čas dobave: Predvidoma 3 - 5 dni | 20,62 € | | |
| 158083RIE | G 1 | 12 | 25 | 42 | 62.0 | Čas dobave: Predvidoma 3 - 5 dni | 30,39 € | | |
| 158085RIE | G 1 1/2 | 10 | 40 | 57 | 81.0 | Čas dobave: Predvidoma 3 - 5 dni | 58,88 € | |
Opis
Check valve, DN 50, Brass, Soft sealed, Operating temperature 0 °C to 90 °C, G 2, PN max. 10 bar
Applications: Water (no steam), neutral and non-corrosive liquid media, mineral oils.
Only suitable for liquid media. Flap valve closes by gravity, therefore only possible to be installed horizontally!
Tehnični podatki in specifikacije
| Ventilski disk | Brass |
| Max. obratovalni tlak [bar] | 10 |
| Ohišje | Brass |
| Max. delovna temperatura [°C] | 90 |
| Tesnilo | NBR |
| Dolžina [mm] | 94.0 |
| DN | 50 |
| Standardni navoj | G-thread acc. to DIN EN ISO 228-1 |
| Navoj | G 2 |
| a/f [mm] | 69 |
