* slike so simbolične
Kamlok Hitro spajane spojka z zunanji navoj, B tip, 1.4401, R 1
SKU: 108108RIE
EAN: 4047322404402
Kamlok quick-connect socket with exterior thread, B type, Stainless steel 1.4401, R 1, for plug Ø 37 mm, Pressure max. 16 bar
High-quality, robust, universal coupling system with a safety clamp for quick and easy connection of two hoses or for joining one hose to a machine connection.
A male part and a female part are joined together by shifting the handles.
There is no need to turn the hose!
Kamlok stainless steel couplings are designed for use with corrosive media in the chemical and petrochemical industries, steelmaking, shipbuilding, agriculture, etc.
All Kamlok quick coupling boxes and Kamlok closure boxes are supplied with NBR seal.

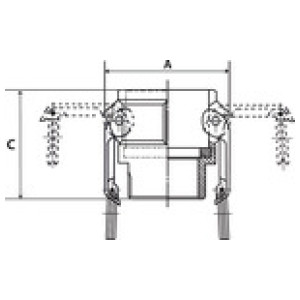

| Šifra | Navoj | Za vtič Ø [mm] | C [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 108110RIE | R 1 1/2 | 54 | 65.5 | 87.4 | Čas dobave: Predvidoma 3 - 5 dni | 44,88 € |  | |
| 108108RIE | R 1 | 37 | 55.5 | 68.2 | Čas dobave: Predvidoma 3 - 5 dni | 28,12 € | | |
| 108113RIE | R 3 | 92 | 84.5 | 131.8 | Čas dobave: Predvidoma 3 - 5 dni | 111,50 € | | |
| 108111RIE | R 2 | 63 | 75.8 | 97.0 | Čas dobave: Predvidoma 3 - 5 dni | 61,89 € | | |
| 108114RIE | R 4 | 120 | 88.5 | 159.9 | Čas dobave: Predvidoma 3 - 5 dni | 144,44 € | | |
| 108109RIE | R 1 1/4 | 46 | 63.0 | 79.7 | Čas dobave: Predvidoma 3 - 5 dni | 40,08 € | | |
| 108112RIE | R 2 1/2 | 76.5 | 85.5 | 109.5 | Čas dobave: Predvidoma 3 - 5 dni | 83,46 € | | |
| 108107RIE | R 3/4 | 32 | 45.5 | 61.3 | Čas dobave: Predvidoma 3 - 5 dni | 21,08 € | |
Opis
Kamlok quick-connect socket with exterior thread, B type, Stainless steel 1.4401, R 1, for plug Ø 37 mm, Pressure max. 16 bar
High-quality, robust, universal coupling system with a safety clamp for quick and easy connection of two hoses or for joining one hose to a machine connection.
A male part and a female part are joined together by shifting the handles.
There is no need to turn the hose!
Kamlok stainless steel couplings are designed for use with corrosive media in the chemical and petrochemical industries, steelmaking, shipbuilding, agriculture, etc.
All Kamlok quick coupling boxes and Kamlok closure boxes are supplied with NBR seal.
Tehnični podatki in specifikacije
| Navoj | R 1 |
| Max. obratovalni tlak [bar] | 16 |
| Za vtič Ø [mm] | 37 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 95 |
| Tesnilo | NBR, resistant to oils and benzine |
| A [mm] | 68.2 |
| C [mm] | 55.5 |
