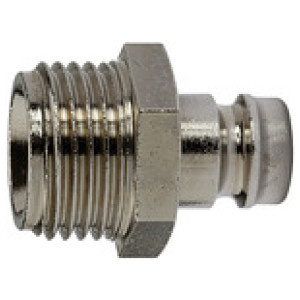

Kaljeni vtični konektor DN 6, zunanji navoj, M8x0.75, dolžina 11
SKU: 107931RIE
EAN: 4047322258234
Tempered plug-in nipple DN 6, Exterior thread, Brass, M8x0.75, AF 11, Operating pressure max. 15 bar, Temp. -20 °C to 160 °C
Compatible with HASCO Z 8 system.
For temperature control applications involving hot or cold water or heat transfer oil, e.g. for cooling circuits on plastics processing machines.
Optionally with free passage, one or both sides sealing.
Female-threaded couplings and plugs with female-threaded PTFE seal.
| Šifra | Material | Navoj | a/f [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 107934RIE | Nickel-plated brass | G 1/8 | 11 | 24.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,63 € |  | |
| 107932RIE | Brass 2.0401 | M10x1 | 11 | 24.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,63 € | | |
| 107935RIE | Nickel-plated brass | G 1/4 | 15 | 26.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,85 € | | |
| 107933RIE | Brass 2.0401 | M14x1.5 | 15 | 26.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,63 € | | |
| 107931RIE | Brass 2.0401 | M8x0.75 | 11 | 24.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,52 € | |
Opis
Tempered plug-in nipple DN 6, Exterior thread, Brass, M8x0.75, AF 11, Operating pressure max. 15 bar, Temp. -20 °C to 160 °C
Compatible with HASCO Z 8 system.
For temperature control applications involving hot or cold water or heat transfer oil, e.g. for cooling circuits on plastics processing machines.
Optionally with free passage, one or both sides sealing.
Female-threaded couplings and plugs with female-threaded PTFE seal.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 15 |
| Srednje | Air, water, oil, vacuum |
| Material | Brass 2.0401 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 160 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 160 |
| Tesnilo | FPM (PTFE coated) |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Pritrdilni obroč | Stainless steel |
| Dolžina [mm] | 24.0 |
| a/f [mm] | 11 |
| Navoj | M8x0.75 |
