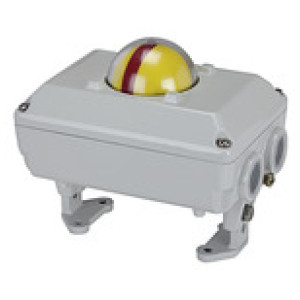

Javljalnik končneg položaja tip SC-M 2, mikrostikalo, 250 V AC
SKU: 103691RIE
EAN: 4047322078214
End position feedback type SC-M 2, micro-switch, 250 V AC, Changeover contact, Current range 16 A, IP 66, Temp. -20 °C to 70 °C
Robust type in an aluminium housing
- Universal indicator for NAMUR sizes 80 x 30 and 130 x 30
- Height-adjustable feet that adapt to different pinion projections
- ON / OFF position indicator also visible from a distance
- Easy-to-adjust, self-locking trip cam
Povpraševanje
IP zaščita: EX TDA21 IP66/67 T 85 °C
Kabelska uvodnica: M20x1.5, up to four cable glands possible
Območje napetosti: Max. 250 V AC
Ohišje: Die-cast aluminium EN AB 46100, epoxy powder-coated
Opis: End position feedback, SC-M 2 type with microswitch
Preklopna funkcija: Changeover, silver-plated contacts
Različica: with double microswitch
Trenutni obseg: Max. 5 A
Vijaki: Stainless steel
| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 103691RIE | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje |  |
Opis
End position feedback type SC-M 2, micro-switch, 250 V AC, Changeover contact, Current range 16 A, IP 66, Temp. -20 °C to 70 °C
Robust type in an aluminium housing
- Universal indicator for NAMUR sizes 80 x 30 and 130 x 30
- Height-adjustable feet that adapt to different pinion projections
- ON / OFF position indicator also visible from a distance
- Easy-to-adjust, self-locking trip cam
Tehnični podatki in specifikacije
| Trenutni obseg | Max. 5 A |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 70 |
| Območje napetosti | Max. 250 V AC |
| Gred | Nickel-plated steel |
| Ohišje | Die-cast aluminium EN AB 46100, epoxy powder-coated |
| Preklopna funkcija | Changeover, silver-plated contacts |
| Vijaki | Stainless steel |
| IP zaščita | EX TDA21 IP66/67 T 85 °C |
| Kabelska uvodnica | M20x1.5, up to four cable glands possible |
| Opis | End position feedback, SC-M 2 type with microswitch |
| Različica | with double microswitch |
