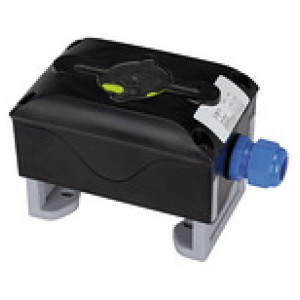

Javljal.kon.položaja ATEX tip N 2, induktiven NAMUR senzor
SKU: 103690RIE
EAN: 4047322078023
End position feedback ATEX type N 2, inductive NAMUR sensors, Nominal voltage 8 V DC, 1 mA - 3 mA, Temp. -20 °C to 70 °C
Robust type in a plastic housing- Universal indicator for NAMUR sizes 80 x 30 and 130 x 30- Height-adjustable feet that adapt to different pinion projections- ON / OFF position indicator also visible from a distance- Easy-to-adjust, self-locking trip cam
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Javljal.kon.položaja ATEX tip N 2, induktiven NAMUR senzor
Glava: Polycarbonate, transparent
Gred: Polyamide PA6, black
IP zaščita: IP 67, acc. to DIN EN 60529
Izhodni tok: Damped <1 mA / undamped >3 mA
Kabelska uvodnica: M20x1.5
Montažni most: PA6 with 30 % glass fibre
Napajanje: Rated voltage 8 VDC
Ohišje: Polyamide blue or black
Opis: End position feedback, with inductive NAMUR sensors, ATEX
Preklopna funkcija: Damped or undamped in the end position
Različica: with inductive NAMUR sensors, ATEX
Tesnilo: EPDM and NBR
Vijaki: Stainless steel 1.4301
Gred: Polyamide PA6, black
IP zaščita: IP 67, acc. to DIN EN 60529
Izhodni tok: Damped <1 mA / undamped >3 mA
Kabelska uvodnica: M20x1.5
Montažni most: PA6 with 30 % glass fibre
Napajanje: Rated voltage 8 VDC
Ohišje: Polyamide blue or black
Opis: End position feedback, with inductive NAMUR sensors, ATEX
Preklopna funkcija: Damped or undamped in the end position
Različica: with inductive NAMUR sensors, ATEX
Tesnilo: EPDM and NBR
Vijaki: Stainless steel 1.4301
| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 103690RIE | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje |  |
Opis
End position feedback ATEX type N 2, inductive NAMUR sensors, Nominal voltage 8 V DC, 1 mA - 3 mA, Temp. -20 °C to 70 °C
Robust type in a plastic housing- Universal indicator for NAMUR sizes 80 x 30 and 130 x 30- Height-adjustable feet that adapt to different pinion projections- ON / OFF position indicator also visible from a distance- Easy-to-adjust, self-locking trip cam
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 70 |
| Gred | Polyamide PA6, black |
| Ohišje | Polyamide blue or black |
| Preklopna funkcija | Damped or undamped in the end position |
| Vijaki | Stainless steel 1.4301 |
| IP zaščita | IP 67, acc. to DIN EN 60529 |
| Kabelska uvodnica | M20x1.5 |
| Izhodni tok | Damped <1 mA / undamped >3 mA |
| Montažni most | PA6 with 30 % glass fibre |
| Tesnilo | EPDM and NBR |
| Glava | Polycarbonate, transparent |
| Napajanje | Rated voltage 8 VDC |
| Opis | End position feedback, with inductive NAMUR sensors, ATEX |
| Različica | with inductive NAMUR sensors, ATEX |
