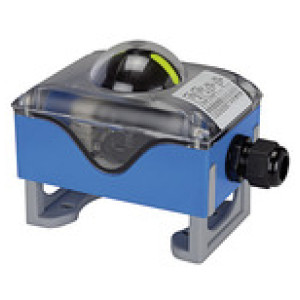

Javl.končneg položaja tip D 2, induktiven senzor, 3-wire PNP
SKU: 103689RIE
EAN: 4047322077835
End position feedback type D 2, inductive sensors, 3-wire PNP, plus switched, 10 V-30 V DC, 100 mA, IP 67, Temp. -20°C to 70°C
Robust type in a plastic housing
- Universal indicator for NAMUR sizes 80 x 30 and 130 x 30
- Height-adjustable feet that adapt to different pinion projections
- ON / OFF position indicator also visible from a distance
- Easy-to-adjust, self-locking trip cam
Šifra | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|
103689RIE | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
Opis
End position feedback type D 2, inductive sensors, 3-wire PNP, plus switched, 10 V-30 V DC, 100 mA, IP 67, Temp. -20°C to 70°C
Robust type in a plastic housing
- Universal indicator for NAMUR sizes 80 x 30 and 130 x 30
- Height-adjustable feet that adapt to different pinion projections
- ON / OFF position indicator also visible from a distance
- Easy-to-adjust, self-locking trip cam
Tehnični podatki in specifikacije
Min. temperaturno območje [°C] | -20 |
Max. temperaturno območje [°C] | 70 |
Območje napetosti | 10 V - 30 V/DC |
Gred | Polyamide PA6, black |
Ohišje | Polyamide blue or black |
Preklopna funkcija | Positive switching, PNP NO contact, damped or undamped in the end position |
Vijaki | Stainless steel 1.4301 |
IP zaščita | IP 67, acc. to DIN EN 60529 |
Kabelska uvodnica | M20x1.5 |
Obratovalni tok | 100 mA |
Montažni most | PA6 with 30 % glass fibre |
Tesnilo | EPDM and NBR |
Glava | Polycarbonate, transparent |
Opis | End position feedback, D 2 type with inductive 3-wire sensors |
Različica | with inductive sensors, 3-wire PNP |
