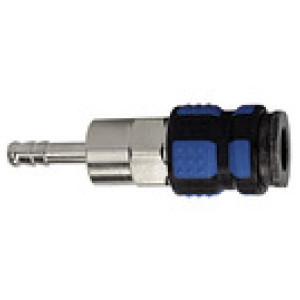

Hitre spojke I.D. 7.8visok pretok,Fi 8
SKU: 107413RIE
EAN: 4047322402743
Quick-connect coupling I.D. 7.8, High flow rate, Sleeve I.D. 8, Operating pressure 0 - 35 bar, Medium/ambient temp. -20°C to 40°C
"One-hand quick disconnect couplings, one side sealing, that combine high flow rates (approx. twice as high as the popular DN 7.2 standard coupling) with minimal coupling forces.
Suitable for all applications with an above-average air requirement!
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
These quick disconnect couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive, food technology, aerospace.
"Šifra | Povezava | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|
107412RIE | I.D. 6 | Čas dobave: Predvidoma 3 - 5 dni | 26,56 € | | |
107415RIE | I.D. 10 | Čas dobave: Predvidoma 3 - 5 dni | 32,57 € | | |
107413RIE | I.D. 8 | Čas dobave: Predvidoma 3 - 5 dni | 32,57 € | | |
107414RIE | I.D. 9 | Čas dobave: Predvidoma 3 - 5 dni | 26,56 € | | |
107416RIE | I.D. 13 | Čas dobave: Predvidoma 3 - 5 dni | 27,14 € | |
Opis
Quick-connect coupling I.D. 7.8, High flow rate, Sleeve I.D. 8, Operating pressure 0 - 35 bar, Medium/ambient temp. -20°C to 40°C
"One-hand quick disconnect couplings, one side sealing, that combine high flow rates (approx. twice as high as the popular DN 7.2 standard coupling) with minimal coupling forces.
Suitable for all applications with an above-average air requirement!
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
These quick disconnect couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive, food technology, aerospace.
"Tehnični podatki in specifikacije
DN | 7.8 |
Max. obratovalni tlak [bar] | 35 |
Povezava | I.D. 8 |
Tesnilo | NBR |
Min. temperatura medija [°C] | -20 |
Max. temperatura medija [°C] | 40 |
Min. sobna temperatura [°C] | -20 |
Max. sobna temperatura [°C] | 40 |
Pretok | 2100 l/min (air) |
Krogla | Stainless steel |
Vzmet | Stainless steel |
Telo ventila | Steel, QPQ treated |
Pritrdilni obroč | Stainless steel |
Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
Sedež ventila | Brass |
Navojni kos | Nickel-plated brass |
Sprostitveni rokav | Extremely robust, ergonomic plastic |
Ventil | Brass |
a/f [mm] | 19 |
Dolžina [mm] | 80.0 |
