* slike so simbolične

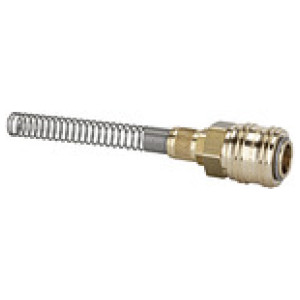

Hitre spojke I.D. 7.2, zunanji navoj medenina,vrteče, 12x9
SKU: 107228RIE
EAN: 4047322285292
Quick-connect coupling I.D. 7.2, bright brass, rotating, Connection 12x9, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C
"Universal, one-hand quick disconnect couplings, one side sealing, suitable for a wide range of tasks and applications!
The closed sleeve protects the coupling from dirt.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
These quick disconnect couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive.
"Povpraševanje
Merjenje pretoka: at 6 bar and Δp = 0.5 bar
Ohišje: Brass with a bare metal surface
Povezava: Hose connection 12x9
Pritrdilni obroč: Stainless steel
Različica: Swivelling 360°
Rokav: Brass with a bare metal surface
Telo ventila: Brass with a bare metal surface
Vzmet: Stainless steel
Zaporni zatič: Stainless steel
Dolžina [mm]: 150.0
Pretok: 1000 l/min (air)
| Šifra | Povezava | Različica | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 107226RIE | Hose connection 8x6 | Swivelling 360° | 132.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje |  |
| 107223RIE | Hose connection 8x6 | Rigid | 132.0 | Čas dobave: Predvidoma 3 - 5 dni | 20,33 € | | |
| 107224RIE | Hose connection 10x8 | Rigid | 126.0 | Čas dobave: Predvidoma 3 - 5 dni | 20,87 € | | |
| 107227RIE | Hose connection 10x8 | Swivelling 360° | 143.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 107225RIE | Hose connection 12x9 | Rigid | 126.0 | Čas dobave: Predvidoma 3 - 5 dni | 21,36 € | | |
| 107228RIE | Hose connection 12x9 | Swivelling 360° | 150.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
Opis
Quick-connect coupling I.D. 7.2, bright brass, rotating, Connection 12x9, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C
"Universal, one-hand quick disconnect couplings, one side sealing, suitable for a wide range of tasks and applications!
The closed sleeve protects the coupling from dirt.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
These quick disconnect couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive.
"Tehnični podatki in specifikacije
| DN | 7.2 |
| Povezava | Hose connection 12x9 |
| a/f [mm] | 22 |
| Ohišje | Brass with a bare metal surface |
| Tesnilo | NBR |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 100 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 100 |
| Pretok | 1000 l/min (air) |
| Vzmet | Stainless steel |
| Telo ventila | Brass with a bare metal surface |
| Rokav | Brass with a bare metal surface |
| Pritrdilni obroč | Stainless steel |
| Zaporni zatič | Stainless steel |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
| Delovni tlak | 0 to 35 bar, maximum static working pressure (non-pulsating) |
| Dolžina [mm] | 150.0 |
| Različica | Swivelling 360° |
