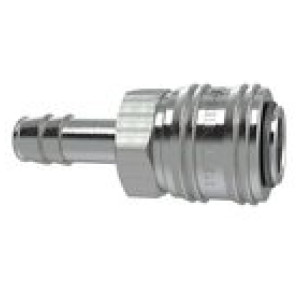

Hitre spojke I.D. 7.2,ponikljana medenina,Fi cevi I.D. 6
SKU: 107286RIE
EAN: 4047322059725
Quick-connect coupling I.D. 7.2, nickel-plated brass, Sleeve I.D. 6, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C
"Universal, one-hand quick disconnect couplings, one side sealing, suitable for a wide range of tasks and applications!
The closed sleeve protects the coupling from dirt.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
These quick disconnect couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive.
"Šifra | Povezava | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|
107289RIE | I.D. 10 | 63.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,92 € | | |
107290RIE | I.D. 13 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,35 € | | |
107286RIE | I.D. 6 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,35 € | | |
107288RIE | I.D. 9 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,35 € | | |
107287RIE | I.D. 8 | 63.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,35 € | |
Opis
Quick-connect coupling I.D. 7.2, nickel-plated brass, Sleeve I.D. 6, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C
"Universal, one-hand quick disconnect couplings, one side sealing, suitable for a wide range of tasks and applications!
The closed sleeve protects the coupling from dirt.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
These quick disconnect couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive.
"Tehnični podatki in specifikacije
DN | 7.2 |
Povezava | I.D. 6 |
a/f [mm] | 21 |
Ohišje | Nickel-plated brass |
Tesnilo | NBR |
Min. temperatura medija [°C] | -20 |
Max. temperatura medija [°C] | 100 |
Min. sobna temperatura [°C] | -20 |
Max. sobna temperatura [°C] | 100 |
Pretok | 1000 l/min (air) |
Vzmet | Stainless steel 1.4310 |
Telo ventila | Brass with a bare metal surface |
Rokav | Nickel-plated brass |
Pritrdilni obroč | Stainless steel 1.4310 |
Zaporni zatič | Stainless steel 1.4034 |
Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
Delovni tlak | 0 to 35 bar, maximum static working pressure (non-pulsating) |
Dolžina [mm] | 58.0 |
