* slike so simbolične

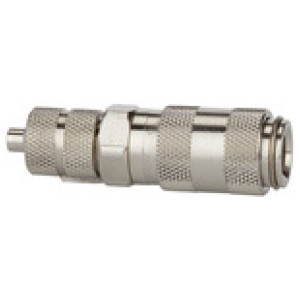

Hitre spojke I.D. 2.7,ponikljana medenina, cev 5x3
SKU: 107094RIE
EAN: 4047322058063
Quick-connect coupling I.D. 2.7, nickel-plated brass, Hose connection 5x3, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C
"One-hand quick disconnect couplings, one side sealing, extremely compact with a large bore and only a small pressure drop.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive.
"Šifra | Povezava | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|
107094RIE | Hose connection 5x3 | Čas dobave: Predvidoma 3 - 5 dni | 13,21 € | | |
107095RIE | Hose connection 6x4 | Čas dobave: Predvidoma 3 - 5 dni | 18,02 € | | |
107093RIE | Hose connection 4x3 | Čas dobave: Predvidoma 3 - 5 dni | 13,21 € | |
Opis
Quick-connect coupling I.D. 2.7, nickel-plated brass, Hose connection 5x3, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C
"One-hand quick disconnect couplings, one side sealing, extremely compact with a large bore and only a small pressure drop.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive.
"Tehnični podatki in specifikacije
DN | 2.7 |
Povezava | Hose connection 5x3 |
Dolžina [mm] | 34.0 |
Delovni tlak | 0 to 35 bar, maximum static working pressure (non-pulsating) |
Ohišje | Nickel-plated brass |
Tesnilo | NBR |
Min. temperatura medija [°C] | -20 |
Max. temperatura medija [°C] | 100 |
Min. sobna temperatura [°C] | -20 |
Max. sobna temperatura [°C] | 100 |
Pretok | 165 l/min (air) |
Krogla | Stainless steel |
Vzmet | Stainless steel |
Telo ventila | Nickel-plated brass |
Rokav | Nickel-plated brass |
Pritrdilni obroč | Stainless steel |
Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
