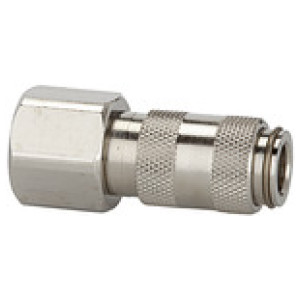

Hitre spojke I.D. 2.7,Nerjavno jeklo 1.4404, M5 notranji navoj
SKU: 107109RIE
EAN: 4047322403887
Quick-connect coupling I.D. 2.7, Stainless steel 1.4404, M5 IT, Operating pressure 0 - 35 bar, Temp. -15 °C to 200 °C
"One-hand quick disconnect couplings, one side sealing, extremely compact with a large bore and only a small pressure drop.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology, offshore.
"
Obrestno financiranje
- 15,07 € x 12 mesecev
- 29,47 € x 6 mesecev
- 58,29 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Povezava | a/f [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 107110RIE | G 1/8 IT | 12 | 28.0 | Čas dobave: Predvidoma 3 - 5 dni | 169,62 € |  | |
| 107109RIE | M5 IT | 9 | 25.0 | Čas dobave: Predvidoma 3 - 5 dni | 160,66 € | |
Opis
Quick-connect coupling I.D. 2.7, Stainless steel 1.4404, M5 IT, Operating pressure 0 - 35 bar, Temp. -15 °C to 200 °C
"One-hand quick disconnect couplings, one side sealing, extremely compact with a large bore and only a small pressure drop.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology, offshore.
"Tehnični podatki in specifikacije
| DN | 2.7 |
| Povezava | M5 IT |
| a/f [mm] | 9 |
| Dolžina [mm] | 25.0 |
| Delovni tlak | 0 to 35 bar, maximum static working pressure (non-pulsating) |
| Ohišje | Stainless steel 1.4404 |
| Tesnilo | FKM |
| Min. temperatura medija [°C] | -15 |
| Max. temperatura medija [°C] | 200 |
| Min. sobna temperatura [°C] | -15 |
| Max. sobna temperatura [°C] | 200 |
| Pretok | 165 l/min (air) |
| Krogla | Stainless steel 1.4404 |
| Vzmet | Stainless steel 1.4404 |
| Telo ventila | Stainless steel 1.4404 |
| Rokav | Stainless steel 1.4404 |
| Pritrdilni obroč | Stainless steel 1.4404 |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
