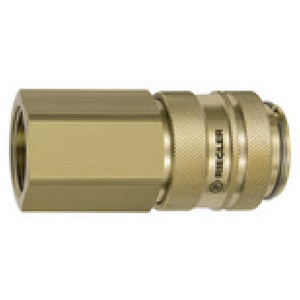

Hitre spojke I.D. 19, zunanji navoj medenina, G 1 notranji navoj
SKU: 141565RIE
EAN: 4047322568371
Quick-connect coupling I.D. 19, Bright brass, G 1 IT, Operating pressure 0 - 35 bar, Med. / ambient temp. -20 °C to 100 °C
"Single-sided blocking and quick connect coupling with extremely high flow performance.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
These quick disconnect couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Machine and plant engineering, manufacturing industry, workshops.
"
Obrestno financiranje
- 12,22 € x 24 mesecev
- 23,39 € x 12 mesecev
- 45,76 € x 6 mesecev
- 90,51 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Povezava | a/f [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 141566RIE | G 1 1/4 IT | 50 | 102.0 | Čas dobave: Predvidoma 3 - 5 dni | 300,30 € |  | |
| 141564RIE | G 3/4 IT | 41 | 98.0 | Čas dobave: Predvidoma 3 - 5 dni | 250,25 € | | |
| 141565RIE | G 1 IT | 41 | 100.0 | Čas dobave: Predvidoma 3 - 5 dni | 250,25 € | |
Opis
Quick-connect coupling I.D. 19, Bright brass, G 1 IT, Operating pressure 0 - 35 bar, Med. / ambient temp. -20 °C to 100 °C
"Single-sided blocking and quick connect coupling with extremely high flow performance.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
These quick disconnect couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Machine and plant engineering, manufacturing industry, workshops.
"Tehnični podatki in specifikacije
| DN | 19 |
| Povezava | G 1 IT |
| a/f [mm] | 41 |
| Dolžina [mm] | 100.0 |
| Delovni tlak | 0 - 35 bar |
| Ohišje | Brass with a bare metal surface |
| Tesnilo | NBR |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 100 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 100 |
| Pretok | 8700 l/min (air) |
| Vzmet | Stainless steel |
| Rokav | Brass with a bare metal surface |
| Navojni kos | Brass with a bare metal surface |
| Ventil | Brass with a bare metal surface |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
