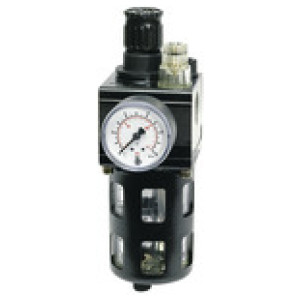

Filter-regulator, Zaščitna kletka, Velikost 2, G 1, 0.5 - 10 bar
SKU: 101106RIE
EAN: 4047322120050
Combi-service unit with PC container and Protective cage, Size 2, G 1, Input pressure max. 16 bar, Control range 0.5 - 10 bar
A filter, pressure regulator and oil-mist lubricator combined in a single device with an extremely compact design.
The pressure setting can be locked by pushing the knob down.
Oil can be filled under pressure.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Filter-regulator, Zaščitna kletka, Velikost 2, G 1, 0.5 - 10 bar
Merjenje pretoka: At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar
Odtok kondenzata: Manual drain valve
Ohišje: Die-cast zinc
Posoda: Polycarbonate container with protective cage
B [mm]: 296.5
Odtok kondenzata: Manual drain valve
Ohišje: Die-cast zinc
Posoda: Polycarbonate container with protective cage
B [mm]: 296.5

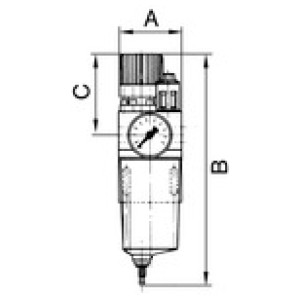

| Šifra | Navoj | Velikost | Max. krmilno območje [bar] | A [mm] | C [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 101106RIE | G 1 | 2 | 10 | 93.0 | 96.5 | 296.5 | 3400 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje |  |
| 101104RIE | G 3/4 | 2 | 10 | 97.0 | 96.5 | 296.5 | 3400 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 101100RIE | G 3/8 | 1 | 10 | 67.0 | 68.5 | 217.0 | 1400 | Čas dobave: Predvidoma 3 - 5 dni | 220,55 € | | |
| 101105RIE | G 3/4 | 2 | 16 | 97.0 | 96.5 | 296.5 | 2800 | Čas dobave: Predvidoma 3 - 5 dni | 311,81 € | | |
| 101099RIE | G 1/4 | 1 | 16 | 67.0 | 68.5 | 217.0 | 1000 | Čas dobave: Predvidoma 3 - 5 dni | 220,91 € | | |
| 101103RIE | G 1/2 | 1 | 16 | 65.0 | 68.5 | 217.0 | 1000 | Čas dobave: Predvidoma 3 - 5 dni | 219,11 € | | |
| 101098RIE | G 1/4 | 1 | 10 | 67.0 | 68.5 | 217.0 | 1400 | Čas dobave: Predvidoma 3 - 5 dni | 220,91 € | | |
| 101101RIE | G 3/8 | 1 | 16 | 67.0 | 68.5 | 217.0 | 1000 | Čas dobave: Predvidoma 3 - 5 dni | 220,55 € | | |
| 101107RIE | G 1 | 2 | 16 | 93.0 | 96.5 | 296.5 | 2800 | Čas dobave: Predvidoma 3 - 5 dni | 338,15 € | | |
| 101102RIE | G 1/2 | 1 | 10 | 65.0 | 68.5 | 217.0 | 1400 | Čas dobave: Predvidoma 3 - 5 dni | 219,11 € | |
Opis
Combi-service unit with PC container and Protective cage, Size 2, G 1, Input pressure max. 16 bar, Control range 0.5 - 10 bar
A filter, pressure regulator and oil-mist lubricator combined in a single device with an extremely compact design.
The pressure setting can be locked by pushing the knob down.
Oil can be filled under pressure.
Tehnični podatki in specifikacije
| Navoj | G 1 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 2 |
| Ohišje | Die-cast zinc |
| Tesnilo | NBR |
| Rang filtra [µm] | 40 |
| Vidna kupola | PA |
| Max. temperatura medija [°C] | 50 |
| Max. sobna temperatura [°C] | 50 |
| Vzmet pokrova motorja | PA |
| Pretok [l/min] | 3400 |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 10 |
| Odtok kondenzata | Manual drain valve |
| Posoda | Polycarbonate container with protective cage |
| A [mm] | 93.0 |
| B [mm] | 296.5 |
| C [mm] | 96.5 |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
