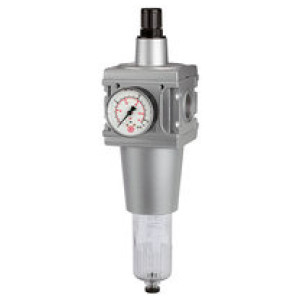

Filter regulator »multifix«, 40 µm, Velikost 5, G 1, 0.5 - 16 bar
SKU: 100487RIE
EAN: 4047322392488
Filter regulator »multifix«, PC container, press. gauge, 40 µm, Size 5, G 1, Input pressure max. 16 bar, Control range 0.5-16 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator.
The pressure setting can be locked by pushing the button down.
Čas dobave: Predvidoma 3 - 5 dni
388,67 €
ali od 10,36 € / mesec
Izračunaj obrok
Obrestno financiranje
- 10,36 € x 48 mesecev
- 13,24 € x 36 mesecev
- 19,02 € x 24 mesecev
- 36,40 € x 12 mesecev
- 71,21 € x 6 mesecev
- 140,83 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Ohišje | Min. krmilno območje [bar] | Velikost | Rang filtra [µm] | DN | Max. krmilno območje [bar] | Zaslon manometra max. [bar] | A [mm] | C [mm] | D [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100479RIE | G 1/2 | Die-cast zinc | 0.5 | 3 | 5 | 15 | 16 | 25 | 68.8 | 99.0 | 147.3 | 246.3 | 6700 | Čas dobave: Predvidoma 3 - 5 dni | 127,72 € |  | |
| 100471RIE | G 1/4 | Die-cast zinc | 0.5 | 1 | 5 | 6 | 16 | 25 | 47.8 | 67.0 | 125.1 | 192.1 | 1600 | Čas dobave: Predvidoma 3 - 5 dni | 83,09 € | | |
| 100487RIE | G 1 | Aluminium | 0.5 | 5 | 40 | 25 | 16 | 25 | 100.0 | 128.0 | 253.8 | 381.8 | 15000 | Čas dobave: Predvidoma 3 - 5 dni | 388,67 € | | |
| 100481RIE | G 3/4 | Die-cast zinc | 0.2 | 3 | 5 | 20 | 6 | 10 | 68.8 | 99.0 | 147.3 | 246.3 | 6700 | Čas dobave: Predvidoma 3 - 5 dni | 127,72 € | | |
| 100470RIE | G 1/4 | Die-cast zinc | 0.5 | 1 | 5 | 6 | 10 | 16 | 47.8 | 67.0 | 125.1 | 192.1 | 1600 | Čas dobave: Predvidoma 3 - 5 dni | 83,09 € | | |
| 100486RIE | G 1 | Aluminium | 0.5 | 5 | 40 | 25 | 10 | 16 | 100.0 | 128.0 | 253.8 | 381.8 | 15000 | Čas dobave: Predvidoma 3 - 5 dni | 388,67 € | | |
| 100485RIE | G 1 | Aluminium | 0.2 | 5 | 40 | 25 | 6 | 10 | 100.0 | 128.0 | 253.8 | 381.8 | 15000 | Čas dobave: Predvidoma 3 - 5 dni | 388,67 € | | |
| 100484RIE | G 1 | Aluminium | 0.1 | 5 | 40 | 25 | 3 | 4 | 100.0 | 128.0 | 253.8 | 381.8 | 15000 | Čas dobave: Predvidoma 3 - 5 dni | 388,67 € | | |
| 100472RIE | G 3/8 | Die-cast zinc | 0.1 | 1 | 5 | 10 | 3 | 4 | 47.8 | 67.0 | 125.1 | 192.1 | 1600 | Čas dobave: Predvidoma 3 - 5 dni | 83,09 € | | |
| 100480RIE | G 3/4 | Die-cast zinc | 0.1 | 3 | 5 | 20 | 3 | 4 | 68.8 | 99.0 | 147.3 | 246.3 | 6700 | Čas dobave: Predvidoma 3 - 5 dni | 127,72 € | | |
| 100469RIE | G 1/4 | Die-cast zinc | 0.2 | 1 | 5 | 6 | 6 | 10 | 47.8 | 67.0 | 125.1 | 192.1 | 1600 | Čas dobave: Predvidoma 3 - 5 dni | 83,09 € | | |
| 100474RIE | G 3/8 | Die-cast zinc | 0.5 | 1 | 5 | 10 | 10 | 16 | 47.8 | 67.0 | 125.1 | 192.1 | 1600 | Čas dobave: Predvidoma 3 - 5 dni | 83,09 € | | |
| 100473RIE | G 3/8 | Die-cast zinc | 0.2 | 1 | 5 | 10 | 6 | 10 | 47.8 | 67.0 | 125.1 | 192.1 | 1600 | Čas dobave: Predvidoma 3 - 5 dni | 83,09 € | | |
| 100476RIE | G 1/2 | Die-cast zinc | 0.1 | 3 | 5 | 15 | 3 | 4 | 68.8 | 99.0 | 147.3 | 246.3 | 6700 | Čas dobave: Predvidoma 3 - 5 dni | 127,72 € | | |
| 100478RIE | G 1/2 | Die-cast zinc | 0.5 | 3 | 5 | 15 | 10 | 16 | 68.8 | 99.0 | 147.3 | 246.3 | 6700 | Čas dobave: Predvidoma 3 - 5 dni | 127,72 € | | |
| 100477RIE | G 1/2 | Die-cast zinc | 0.2 | 3 | 5 | 15 | 6 | 10 | 68.8 | 99.0 | 147.3 | 246.3 | 6700 | Čas dobave: Predvidoma 3 - 5 dni | 127,72 € | | |
| 100482RIE | G 3/4 | Die-cast zinc | 0.5 | 3 | 5 | 20 | 10 | 16 | 68.8 | 99.0 | 147.3 | 246.3 | 6700 | Čas dobave: Predvidoma 3 - 5 dni | 127,72 € | | |
| 100483RIE | G 3/4 | Die-cast zinc | 0.5 | 3 | 5 | 20 | 16 | 25 | 68.8 | 99.0 | 147.3 | 246.3 | 6700 | Čas dobave: Predvidoma 3 - 5 dni | 127,72 € | | |
| 100468RIE | G 1/4 | Die-cast zinc | 0.1 | 1 | 5 | 6 | 3 | 4 | 47.8 | 67.0 | 125.1 | 192.1 | 1600 | Čas dobave: Predvidoma 3 - 5 dni | 83,09 € | | |
| 100475RIE | G 3/8 | Die-cast zinc | 0.5 | 1 | 5 | 10 | 16 | 25 | 47.8 | 67.0 | 125.1 | 192.1 | 1600 | Čas dobave: Predvidoma 3 - 5 dni | 83,09 € | |
Opis
Filter regulator »multifix«, PC container, press. gauge, 40 µm, Size 5, G 1, Input pressure max. 16 bar, Control range 0.5-16 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator.
The pressure setting can be locked by pushing the button down.
Tehnični podatki in specifikacije
| Navoj | G 1 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 5 |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Tesnilo | NBR |
| Vzmet pokrova motorja | POM-brass |
| Poraba zraka | Yes |
| Max. notranja poraba zraka | 0,5 l/min (depending on secondary pressure) |
| Odtok kondenzata | Semi-automatic |
| Pretok [l/min] | 15000 |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 16 |
| Zaslon manometra max. [bar] | 25 |
| DN | 25 |
| Ohišje | Aluminium |
| Rang filtra [µm] | 40 |
| Posoda | Polycarbonate container |

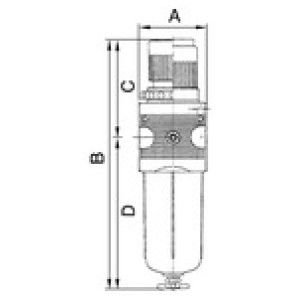

| A [mm] | 100.0 |
| B [mm] | 381.8 |
| C [mm] | 128.0 |
| D [mm] | 253.8 |
| Serija | multifix |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6,3 bar and pressure drop Δp = 1 bar |
