Digitalni zaslon na zaslonu, 4-mestni LCD zaslon -1999 to +9999 slika

* slike so simbolične

Digitalni zaslon na zaslonu, 4-mestni LCD zaslon -1999 to +9999

SKU: 102756RIE
EAN: 7082534

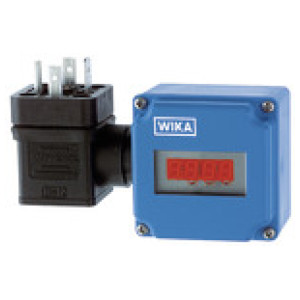

Digital snap on display for pressure transducer, 4-digit LCD display of -1999 to +9999, Operating temp. 0 °C to +50 °C

The digital plug-in display is freely programmable and easily mounted, and can therefore be retrofitted in a very short time without any problems, even if the transmitter is already in use. No external power supply is required. Suitable for all 4 to 20 mA transmitters with a right-angle connector. Freely programmable by means of keys inside the display.

Čas dobave: Predvidoma 3 - 5 dni
334,07 €
ali od 11,36 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 11,36 € x 36 mesecev
  • 16,33 € x 24 mesecev
  • 31,25 € x 12 mesecev
  • 61,14 € x 6 mesecev
  • 120,92 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Zaloga Cena Nakup Natisni
102756RIE
Čas dobave: Predvidoma 3 - 5 dni
334,07 € Natisni

Opis

Digital snap on display for pressure transducer, 4-digit LCD display of -1999 to +9999, Operating temp. 0 °C to +50 °C

The digital plug-in display is freely programmable and easily mounted, and can therefore be retrofitted in a very short time without any problems, even if the transmitter is already in use. No external power supply is required. Suitable for all 4 to 20 mA transmitters with a right-angle connector. Freely programmable by means of keys inside the display.

Tehnični podatki in specifikacije

Merilno območje -1999 to +9999 digits (min. and max. values freely scalable)
Max. delovna temperatura [°C] 50
IP zaščita IP 65
Električni priključek Adapter for plug acc. to DIN EN 175301-803 A
Zaslon 4-digit, 7-segment LCD display, digits 10 mm high
Napajanje From 4 to 20 mA loop of transmitter
Natančnost ± 0.2% ± 1 digit of span
Vhodni signal 4 to 20 mA, 2-wire
Dolžina [mm] 48.5
Premer [mm] 48.5
Višina [mm] 35.5
