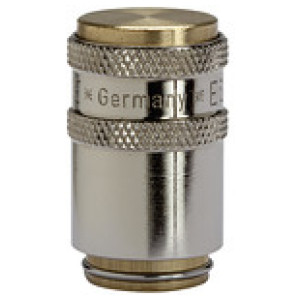

Closing coupling DN 6,Medenina 2.0401, Dolžina 30 mm
SKU: 107929RIE
EAN: 4047322258159
Closing coupling DN 6, Brass 2.0401, Length 30 mm, Operating pressure max. 15 bar, Medium / ambient temperature -20 °C to 160 °C
Compatible with HASCO Z 8 system.
For temperature control applications involving hot or cold water or heat transfer oil, e.g. for cooling circuits on plastics processing machines.
Optionally with free passage, one or both sides sealing.
Female-threaded couplings and plugs with female-threaded PTFE seal.
| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 107929RIE | Čas dobave: Predvidoma 3 - 5 dni | 18,54 € |  |
Opis
Closing coupling DN 6, Brass 2.0401, Length 30 mm, Operating pressure max. 15 bar, Medium / ambient temperature -20 °C to 160 °C
Compatible with HASCO Z 8 system.
For temperature control applications involving hot or cold water or heat transfer oil, e.g. for cooling circuits on plastics processing machines.
Optionally with free passage, one or both sides sealing.
Female-threaded couplings and plugs with female-threaded PTFE seal.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 15 |
| Srednje | Air, water, oil, vacuum |
| Material | Brass 2.0401 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 160 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 160 |
| Tesnilo | FPM (PTFE coated) |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Pritrdilni obroč | Stainless steel |
| Dolžina [mm] | 30.0 |
