* slike so simbolične

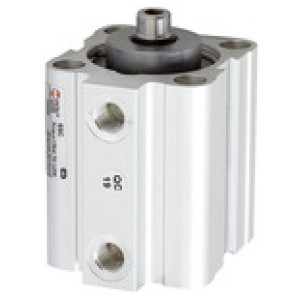

Cilinder kratkega hoda, enosmerni, bat Ø 20, hod 10, M5
SKU: 105956RIE
EAN: 2100200010CN
Short stroke cylinder, single-acting, Magnet, Piston Ø 20, Stroke 10, M5, Working pressure max. 10 bar, Temp. -10 °C to 80 °C
Suitable for installation in limited spaces.
Supplied with magnet.
Suitable for filtered compressed air, lubricated (ensure continuity) or unlubricated.
Čas dobave: Predvidoma 3 - 5 dni
73,80 €
ali od 13,55 € / mesec
Izračunaj obrok
Obrestno financiranje
- 13,55 € x 6 mesecev
- 26,79 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Batnica IT | Glava | Povezava | Min. nastavljeni tlak [bar] | Stroke [mm] | Bat Ø [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 105954RIE | M5 | Painted brass | M5 | 0.6 | 10 | 16 | Čas dobave: Predvidoma 3 - 5 dni | 70,30 € |  | |
| 105959RIE | M5 | Painted brass | G 1/8 | 0.6 | 25 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 78,71 € | | |
| 105958RIE | M5 | Painted brass | G 1/8 | 0.6 | 10 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 77,27 € | | |
| 105965RIE | M8 | Aluminium | G 1/8 | 0.4 | 25 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 127,94 € | | |
| 105953RIE | M3 | Painted brass | M5 | 0.6 | 25 | 12 | Čas dobave: Predvidoma 3 - 5 dni | 69,21 € | | |
| 105956RIE | M5 | Painted brass | M5 | 0.6 | 10 | 20 | Čas dobave: Predvidoma 3 - 5 dni | 73,80 € | | |
| 105955RIE | M5 | Painted brass | M5 | 0.6 | 25 | 16 | Čas dobave: Predvidoma 3 - 5 dni | 71,11 € | | |
| 105957RIE | M5 | Painted brass | M5 | 0.6 | 25 | 20 | Čas dobave: Predvidoma 3 - 5 dni | 74,62 € | | |
| 105952RIE | M3 | Painted brass | M5 | 0.6 | 10 | 12 | Čas dobave: Predvidoma 3 - 5 dni | 68,54 € | | |
| 105961RIE | M6 | Aluminium | G 1/8 | 0.6 | 25 | 32 | Čas dobave: Predvidoma 3 - 5 dni | 89,19 € | | |
| 105962RIE | M6 | Aluminium | G 1/8 | 0.4 | 10 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 88,39 € | | |
| 105963RIE | M6 | Aluminium | G 1/8 | 0.4 | 25 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 90,15 € | | |
| 105960RIE | M6 | Aluminium | G 1/8 | 0.6 | 10 | 32 | Čas dobave: Predvidoma 3 - 5 dni | 87,45 € | | |
| 105964RIE | M8 | Aluminium | G 1/8 | 0.4 | 25 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 103,80 € | |
Opis
Short stroke cylinder, single-acting, Magnet, Piston Ø 20, Stroke 10, M5, Working pressure max. 10 bar, Temp. -10 °C to 80 °C
Suitable for installation in limited spaces.
Supplied with magnet.
Suitable for filtered compressed air, lubricated (ensure continuity) or unlubricated.
Tehnični podatki in specifikacije
| Min. nastavljeni tlak [bar] | 0.6 |
| Magnet | with magnet |
| Ffunkcija | single-acting |
| Starting position | pressureless in the retracted position |
| Cushioning | non-cushioned |
| Gewinde Kolbenstange | female piston rod |
| Max. delovni tlak [bar] | 10 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 80 |
| Ovoj | C45 steel, hard chrome-plated |
| Tesnilo batnice | NBR (additional charge for PU and FKM) |
| Bat Ø [mm] | 20 |
| Stroke [mm] | 10 |
| Povezava | M5 |
| Batnica | C45 steel, hard chrome-plated |
| Batnica IT | M5 |
| Bat | Synthetic (acetal) resin |
| Glava | Painted brass |
