3-pot. krog. ventil, Stinard, L-izpust, nikljana med., 2
SKU: 103382RIE
EAN: 4047322012843

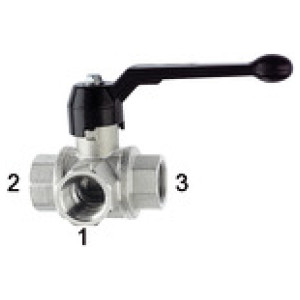

3-way ball valve, Standard, L-hole, nickel-plated brass, Medium / ambient temp. -10 °C to 120 °C, Rp 2, DN 50, PN max. 10 bar
3-way ball valves with full bore for diverting media.
Applications: Water, non-toxic gases, plumbing and heating systems, oils, general industrial applications, diesel fuel
Obrestno financiranje
- 10,31 € x 36 mesecev
- 14,81 € x 24 mesecev
- 28,35 € x 12 mesecev
- 55,46 € x 6 mesecev
- 109,70 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

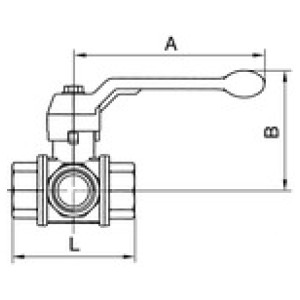

| Šifra | Navoj | DN | PN [bar] | L [mm] | B [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 103375RIE | Rp 1/4 | 8 | 40 | 52.0 | 61.0 | 100.0 | Čas dobave: Predvidoma 3 - 5 dni | 47,34 € |  | |
| 103381RIE | Rp 1 1/2 | 40 | 10 | 114.0 | 104.0 | 150.0 | Čas dobave: Predvidoma 3 - 5 dni | 218,61 € | | |
| 103380RIE | Rp 1 1/4 | 32 | 10 | 103.0 | 98.0 | 150.0 | Čas dobave: Predvidoma 3 - 5 dni | 136,84 € | | |
| 103379RIE | Rp 1 | 25 | 40 | 89.0 | 80.0 | 120.0 | Čas dobave: Predvidoma 3 - 5 dni | 101,88 € | | |
| 103378RIE | Rp 3/4 | 20 | 40 | 77.0 | 76.0 | 120.0 | Čas dobave: Predvidoma 3 - 5 dni | 71,63 € | | |
| 103376RIE | Rp 3/8 | 10 | 40 | 55.0 | 61.0 | 100.0 | Čas dobave: Predvidoma 3 - 5 dni | 47,34 € | | |
| 103377RIE | Rp 1/2 | 15 | 40 | 69.0 | 64.0 | 100.0 | Čas dobave: Predvidoma 3 - 5 dni | 55,27 € | | |
| 103382RIE | Rp 2 | 50 | 10 | 134.0 | 119.0 | 175.0 | Čas dobave: Predvidoma 3 - 5 dni | 303,00 € | |
Opis
3-way ball valve, Standard, L-hole, nickel-plated brass, Medium / ambient temp. -10 °C to 120 °C, Rp 2, DN 50, PN max. 10 bar
3-way ball valves with full bore for diverting media.
Applications: Water, non-toxic gases, plumbing and heating systems, oils, general industrial applications, diesel fuel
Tehnični podatki in specifikacije
| Ohišje | Nickel-plated brass |
| Tesnilo | PTFE |
| Min. temperatura medija [°C] | -10 |
| Max. temperatura medija [°C] | 120 |
| Min. sobna temperatura [°C] | -10 |
| Max. sobna temperatura [°C] | 120 |
| Notranji deli | Nickel-plated brass |
| Material navojev | Brass with a bare metal surface |
| Ročica | Aluminium, painted black |
| Navoj | Rp 2 |
| DN | 50 |
| PN [bar] | 10 |
| Standardni navoj | Rp thread acc. to ISO 7-1 |
| A [mm] | 175.0 |
| B [mm] | 119.0 |
| L [mm] | 134.0 |
