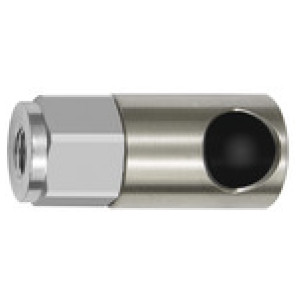

Zaščitna spojka s tipko z N.N.I.D. 6, ISO 6150 C, G 1/4 N.N.
SKU: 141927RIE
EAN: 4047322566872
Pushbutton safety coupling I.D. 6, ISO 6150 C, Stainless steel, G 1/4 IT, Operating pressure max. 12 bar, Temp. -20 °C to 200 °C
"High quality, robust and long-lifetime quick connect coupling in a safety design that can be operated with one hand.
When pushed for the first time the coupling is vented, the plug remains securely in the coupling.
After a second push the plug is released.
This prevents a potential ""whiplash effect"" and the risk of operating personnel is practically excluded.
The safety version meets ISO standard DIN EN ISO 4414.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, workshops, automotive, mining, offshore.
"| Šifra | Povezava | a/f [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 141926RIE | G 1/8 IT | 20 | 53.0 | Čas dobave: Predvidoma 3 - 5 dni | 28,77 € |  | |
| 141929RIE | G 1/2 IT | 24 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 26,28 € | | |
| 141928RIE | G 3/8 IT | 20 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 26,28 € | | |
| 141927RIE | G 1/4 IT | 20 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 24,86 € | |
Opis
Pushbutton safety coupling I.D. 6, ISO 6150 C, Stainless steel, G 1/4 IT, Operating pressure max. 12 bar, Temp. -20 °C to 200 °C
"High quality, robust and long-lifetime quick connect coupling in a safety design that can be operated with one hand.
When pushed for the first time the coupling is vented, the plug remains securely in the coupling.
After a second push the plug is released.
This prevents a potential ""whiplash effect"" and the risk of operating personnel is practically excluded.
The safety version meets ISO standard DIN EN ISO 4414.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, workshops, automotive, mining, offshore.
"Tehnični podatki in specifikacije
| DN | 6 |
| Max. obratovalni tlak [bar] | 12 |
| Povezava | G 1/4 IT |
| a/f [mm] | 20 |
| Merjenje pretoka | at 6 bar and Δp = 1 bar |
| Vtični profil | acc. ISO 6150 C |
| Ohišje | Stainless steel |
| Tesnilo | FKM |
| Pretok | 1150 l/min (air) |
| Navojni kos | Galvanised steel |
| Ventil | Brass |
| Gumb | Stainless steel |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 200 |
| Vzmet | Stainless steel |
| Dolžina [mm] | 55.0 |
