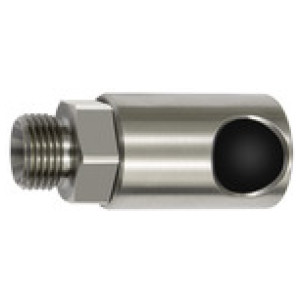

Zašč. nav. spoj. s tipko z Z.N. I.D. 8,ISO 6150 C,G1/4 Z.N.
SKU: 141955RIE
EAN: 4047322566964
Pushbutton safety coupling I.D. 8, ISO 6150 C, Stainless steel, G 1/4 ET, Operating pressure max. 16 bar, Temp. -20 °C to 200 °C
"High quality, robust and long-lifetime quick connect coupling in a safety design that can be operated with one hand.
When pushed for the first time the coupling is vented, the plug remains securely in the coupling.
After a second push the plug is released.
This prevents a potential ""whiplash effect"" and the risk of operating personnel is practically excluded.
The safety version meets ISO standard DIN EN ISO 4414.
These safety couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, workshops, automotive, mining, offshore.
"
Obrestno financiranje
- 11,71 € x 6 mesecev
- 23,17 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Povezava | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 141957RIE | G 1/2 ET | 75.0 | Čas dobave: Predvidoma 3 - 5 dni | 46,34 € |  | |
| 141955RIE | G 1/4 ET | 72.0 | Čas dobave: Predvidoma 3 - 5 dni | 64,33 € | | |
| 141956RIE | G 3/8 ET | 72.0 | Čas dobave: Predvidoma 3 - 5 dni | 64,33 € | |
Opis
Pushbutton safety coupling I.D. 8, ISO 6150 C, Stainless steel, G 1/4 ET, Operating pressure max. 16 bar, Temp. -20 °C to 200 °C
"High quality, robust and long-lifetime quick connect coupling in a safety design that can be operated with one hand.
When pushed for the first time the coupling is vented, the plug remains securely in the coupling.
After a second push the plug is released.
This prevents a potential ""whiplash effect"" and the risk of operating personnel is practically excluded.
The safety version meets ISO standard DIN EN ISO 4414.
These safety couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, workshops, automotive, mining, offshore.
"Tehnični podatki in specifikacije
| DN | 8 |
| Max. obratovalni tlak [bar] | 16 |
| Povezava | G 1/4 ET |
| a/f [mm] | 25 |
| Merjenje pretoka | at 6 bar and Δp = 1 bar |
| Vtični profil | acc. ISO 6150 C |
| Ohišje | Stainless steel |
| Tesnilo | FKM |
| Pretok | 2080 l/min (air) |
| Navojni kos | Galvanised steel |
| Ventil | Brass |
| Gumb | Stainless steel |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 200 |
| Vzmet | Stainless steel |
| Dolžina [mm] | 72.0 |
