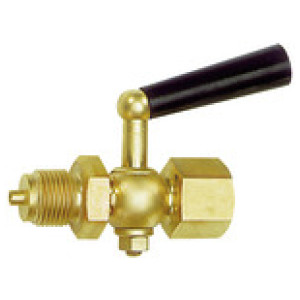

Zaporni ventili manometrov, puša-pipa, svetla medenina, G 3/8
SKU: 102648RIE
EAN: 9091815
Block valve pressure gauge, Bushing - taps, made of bright brass, G 3/8, PN 16 bar, AF 22, max. 50 °C
It is useful to install a stopcock as a shut-off element between the pressure gauge and the pipe.
When the lever is set to the »blow out« position, the medium is discharged into the atmosphere.
Stopcocks with a test port allow pressure gauges to be simultaneously connected to the pipe.
| Šifra | Navoj | Ohišje | Različica | PN [bar] | a/f [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 102649RIE | G 1/2 | Brass with a bare metal surface | female / male | 25 | 27 | Čas dobave: Predvidoma 3 - 5 dni | 24,39 € |  | |
| 102647RIE | G 1/4 | Brass with a bare metal surface | female / male | 6 | 17 | Čas dobave: Predvidoma 3 - 5 dni | 17,69 € | | |
| 102650RIE | G 1/2 | Stainless steel 1.4571 | female / male | 25 | 27 | Čas dobave: Predvidoma 3 - 5 dni | 132,26 € | | |
| 102651RIE | G 1/2 | Brass with a bare metal surface | female / male, with test flange 60x25x10 | 25 | 27 | Čas dobave: Predvidoma 3 - 5 dni | 43,31 € | | |
| 102648RIE | G 3/8 | Brass with a bare metal surface | female / male | 16 | 22 | Čas dobave: Predvidoma 3 - 5 dni | 21,28 € | |
Opis
Block valve pressure gauge, Bushing - taps, made of bright brass, G 3/8, PN 16 bar, AF 22, max. 50 °C
It is useful to install a stopcock as a shut-off element between the pressure gauge and the pipe.
When the lever is set to the »blow out« position, the medium is discharged into the atmosphere.
Stopcocks with a test port allow pressure gauges to be simultaneously connected to the pipe.
Tehnični podatki in specifikacije
| Navoj | G 3/8 |
| PN [bar] | 16 |
| a/f [mm] | 22 |
| Max. temperaturno območje [°C] | 50 |
| Ročica | Plastic |
| Ohišje | Brass with a bare metal surface |
| Različica | female / male |
| Aplikacije | For all pressure gauges with a flat gasket acc. to DIN 16258 |
