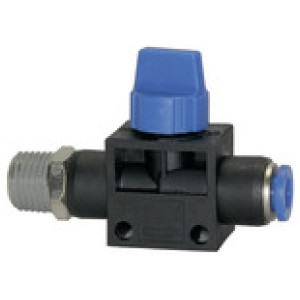

Zaporni ventil Blue serija, Vtični prik. R 1/4, Cev Ø 8
SKU: 110089RIE
EAN: 4047322202497
Blocking valve »Blue Series«, Plug connector, R 1/4 o., for hose exterior Ø 8 mm, pmin 1.5 bar, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
16,02 €

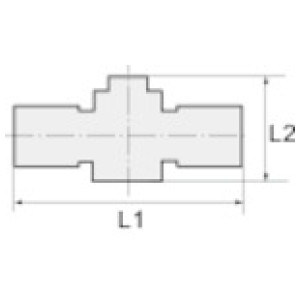

| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 110093RIE | R 3/8 | 10 | 17 | 47.0 | 73.4 | Čas dobave: Predvidoma 3 - 5 dni | 25,28 € |  | |
| 110088RIE | R 1/4 | 6 | 12 | 42.6 | 60.5 | Čas dobave: Predvidoma 3 - 5 dni | 13,75 € | | |
| 110086RIE | R 1/8 | 6 | 12 | 42.6 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,40 € | | |
| 110090RIE | R 1/4 | 10 | 17 | 47.0 | 72.4 | Čas dobave: Predvidoma 3 - 5 dni | 24,16 € | | |
| 110089RIE | R 1/4 | 8 | 14 | 42.6 | 60.9 | Čas dobave: Predvidoma 3 - 5 dni | 16,02 € | | |
| 110096RIE | R 1/2 | 12 | 21 | 47.0 | 77.3 | Čas dobave: Predvidoma 3 - 5 dni | 29,99 € | | |
| 110091RIE | R 1/4 | 12 | 21 | 47.0 | 72.3 | Čas dobave: Predvidoma 3 - 5 dni | 29,99 € | | |
| 110095RIE | R 1/2 | 10 | 21 | 47.0 | 76.9 | Čas dobave: Predvidoma 3 - 5 dni | 26,74 € | | |
| 110092RIE | R 3/8 | 8 | 17 | 42.6 | 62.4 | Čas dobave: Predvidoma 3 - 5 dni | 18,00 € | | |
| 110087RIE | R 1/8 | 8 | 14 | 42.6 | 58.9 | Čas dobave: Predvidoma 3 - 5 dni | 15,59 € | | |
| 110094RIE | R 3/8 | 12 | 21 | 47.0 | 74.3 | Čas dobave: Predvidoma 3 - 5 dni | 29,99 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | 1.5 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Navoj | R 1/4 |
| Za cevi O.D. [mm] | 8 |
| L1 [mm] | 60.9 |
| L2 [mm] | 42.6 |
| a/f [mm] | 14 |
| Material | Plastic and nickel-plated brass |
