* slike so simbolične
Zapiralni čep imbusz collar G 3/4dolž. 24
SKU: 136466RIE
EAN: 4047322505703

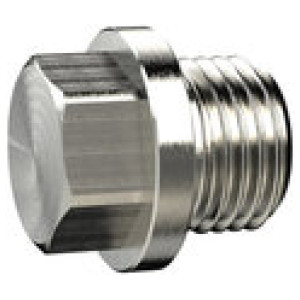

Locking screw, Exterior hexagonal with collar G 3/4, nickel-plated brass, Max. working pressure 25 bar, Max. operating temp. 150°C
Suitable for air, water, oil, steam, etc.
Čas dobave: Predvidoma 3 - 5 dni
13,46 €
| Šifra | Navoj | L2 [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 136469RIE | G 1 1/2 hexagon head | 15.0 | 30 | 32.0 | Čas dobave: Predvidoma 3 - 5 dni | 37,33 € |  | |
| 136467RIE | G 1 hexagon head | 13.0 | 27 | 29.0 | Čas dobave: Predvidoma 3 - 5 dni | 18,82 € | | |
| 136468RIE | G 1 1/4 hexagon head | 14.0 | 30 | 31.0 | Čas dobave: Predvidoma 3 - 5 dni | 31,37 € | | |
| 136470RIE | G 2 hexagon head | 20.0 | 36 | 40.0 | Čas dobave: Predvidoma 3 - 5 dni | 63,05 € | | |
| 136465RIE | G 1/2 hexagon head | 11.0 | 19 | 23.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,17 € | | |
| 136463RIE | G 1/4 hexagon head | 9.0 | 13 | 18.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,51 € | | |
| 136462RIE | G 1/8 hexagon head | 7.0 | 10 | 16.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,59 € | | |
| 136464RIE | G 3/8 hexagon head | 9.0 | 17 | 18.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,51 € | | |
| 136466RIE | G 3/4 hexagon head | 12.0 | 24 | 26.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,46 € | |
Opis
Locking screw, Exterior hexagonal with collar G 3/4, nickel-plated brass, Max. working pressure 25 bar, Max. operating temp. 150°C
Suitable for air, water, oil, steam, etc.
Tehnični podatki in specifikacije
| Max. delovni tlak [bar] | 25 |
| Max. delovna temperatura [°C] | 150 |
| Material | Nickel-plated brass CW614N |
| Navoj | G 3/4 hexagon head |
| L1 [mm] | 26.0 |
| L2 [mm] | 12.0 |
| a/f [mm] | 24 |
