* slike so simbolične

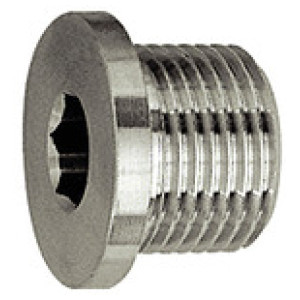

Zaklepni vijaki s tesnilnim obrocem, prirobnica, G 1/4, Inox
SKU: 111646RIE
EAN: 4047322065344
Locking screw, Hexagonal socket and flange G 1/4 Stainless steel 1.4571, Max. working pressure 60 bar, Max. operating temp. 150 °C
Čas dobave: Predvidoma 3 - 5 dni
14,20 €

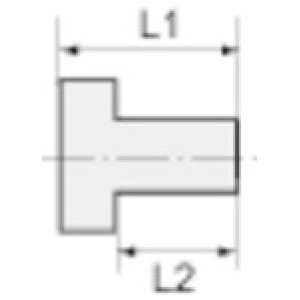

| Šifra | Navoj | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 111647RIE | G 3/8 hexagon socket head | 8 | 12.0 | 15.0 | Čas dobave: Predvidoma 3 - 5 dni | 16,29 € |  | |
| 111650RIE | G 1 hexagon socket head | 17 | 16.0 | 21.0 | Čas dobave: Predvidoma 3 - 5 dni | 40,89 € | | |
| 111649RIE | G 3/4 hexagon socket head | 12 | 16.0 | 20.0 | Čas dobave: Predvidoma 3 - 5 dni | 32,54 € | | |
| 111645RIE | G 1/8 hexagon socket head | 5 | 8.0 | 11.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,70 € | | |
| 111648RIE | G 1/2 hexagon socket head | 10 | 14.0 | 18.0 | Čas dobave: Predvidoma 3 - 5 dni | 18,56 € | | |
| 111646RIE | G 1/4 hexagon socket head | 6 | 10.0 | 13.0 | Čas dobave: Predvidoma 3 - 5 dni | 14,20 € | |
Opis
Locking screw, Hexagonal socket and flange G 1/4 Stainless steel 1.4571, Max. working pressure 60 bar, Max. operating temp. 150 °C
Tehnični podatki in specifikacije
| Max. delovni tlak [bar] | 60 |
| Max. delovna temperatura [°C] | 150 |
| Material | Stainless steel 1.4571 |
| Navoj | G 1/4 hexagon socket head |
| L1 [mm] | 13.0 |
| L2 [mm] | 10.0 |
| a/f [mm] | 6 |
