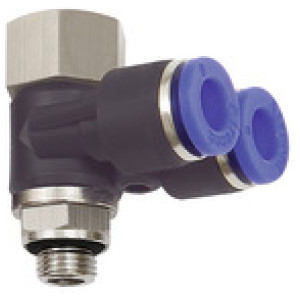

Y-koten priključek »Blue serija«, ki se vrti, M5 i./o.
SKU: 109634RIE
EAN: 4047322387873
Y- angled piece fitting »Blue Series«, rotating, M5 i./o., for hose exterior Ø 4 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
7,05 €

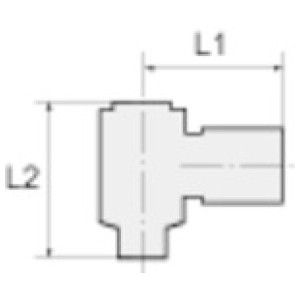

| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | L2 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 109636RIE | G/G 1/4 | 8 | 17 | 28.5 | 36.5 | Čas dobave: Predvidoma 3 - 5 dni | 9,14 € |  | |
| 109635RIE | G/G 1/8 | 6 | 14 | 24.0 | 30.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,47 € | | |
| 109634RIE | M5 | 4 | 12 | 24.0 | 22.5 | Čas dobave: Predvidoma 3 - 5 dni | 7,05 € | | |
| 109637RIE | G/G 3/8 | 10 | 21 | 33.7 | 43.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,09 € | | |
| 109638RIE | G/G 1/2 | 12 | 24 | 37.5 | 51.6 | Čas dobave: Predvidoma 3 - 5 dni | 15,80 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Navoj | M5 |
| Za cevi O.D. [mm] | 4 |
| L1 [mm] | 24.0 |
| L2 [mm] | 22.5 |
| a/f [mm] | 12 |
| Material | Plastic and nickel-plated brass |
