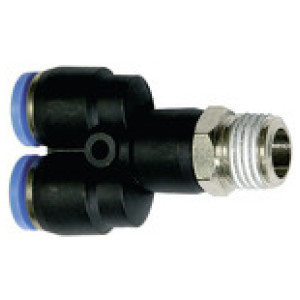

Vtični Y priključek »blue serija«, vrtljivi, R 1/4 o.
SKU: 109613RIE
EAN: 4047322025980
Push-in Y-fitting »Blue Series«, rotating, R 1/4 o., for hose exterior Ø 10 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
10,86 €

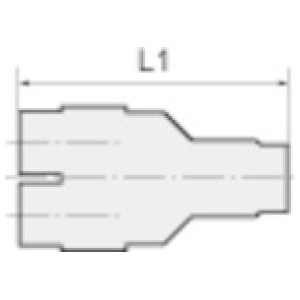

| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 109605RIE | R 1/8 | 4 | 10 | 42.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,92 € |  | |
| 109612RIE | R 1/4 | 8 | 14 | 48.8 | Na zalogi | 9,76 € | | |
| 109623RIE | R 1/2 | 12 | 21 | 65.8 | Čas dobave: Predvidoma 3 - 5 dni | 12,11 € | | |
| 109624RIE | R 1/2 | 16 | 24 | 75.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,18 € | | |
| 109609RIE | R 1/8 | 12 | 21 | 59.8 | Čas dobave: Predvidoma 3 - 5 dni | 9,78 € | | |
| 109611RIE | R 1/4 | 6 | 14 | 46.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,24 € | | |
| 109620RIE | R 1/2 | 6 | 21 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,73 € | | |
| 109606RIE | R 1/8 | 6 | 12 | 43.5 | Čas dobave: Predvidoma 3 - 5 dni | 8,03 € | | |
| 109616RIE | R 3/8 | 8 | 17 | 50.3 | Čas dobave: Predvidoma 3 - 5 dni | 10,17 € | | |
| 109608RIE | R 1/8 | 10 | 17 | 56.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,39 € | | |
| 109617RIE | R 3/8 | 10 | 17 | 59.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,21 € | | |
| 109615RIE | R 3/8 | 6 | 17 | 47.5 | Čas dobave: Predvidoma 3 - 5 dni | 4,50 € | | |
| 109613RIE | R 1/4 | 10 | 17 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,86 € | | |
| 109614RIE | R 1/4 | 12 | 21 | 61.8 | Čas dobave: Predvidoma 3 - 5 dni | 6,00 € | | |
| 109607RIE | R 1/8 | 8 | 14 | 46.8 | Čas dobave: Predvidoma 3 - 5 dni | 9,05 € | | |
| 109610RIE | R 1/4 | 4 | 14 | 45.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,96 € | | |
| 109618RIE | R 3/8 | 12 | 21 | 62.8 | Čas dobave: Predvidoma 3 - 5 dni | 11,65 € | | |
| 109619RIE | R 3/8 | 16 | 24 | 72.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,59 € | | |
| 109621RIE | R 1/2 | 8 | 21 | 53.8 | Čas dobave: Predvidoma 3 - 5 dni | 6,73 € | | |
| 109622RIE | R 1/2 | 10 | 21 | 62.5 | Čas dobave: Predvidoma 3 - 5 dni | 12,11 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Navoj | R 1/4 |
| Za cevi O.D. [mm] | 10 |
| L1 [mm] | 58.0 |
| a/f [mm] | 17 |
| Material | Plastic and nickel-plated brass |
