* slike so simbolične
Vtični T priključek »Click-klak«, vrteče, R 3/8 o.
SKU: 108671RIE
EAN: 4047322208550

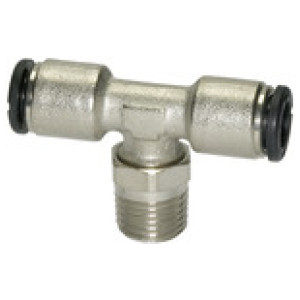

Push-in T-fitting »click-clock«, rotating, R 3/8 o., for hose exterior Ø 8, Working pressure -0.99 to 16 bar, nickel-plated brass
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Čas dobave: Predvidoma 3 - 5 dni
8,89 €
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 108670RIE | R 1/4 | 10 | 14 | 26.3 | 54.4 | Čas dobave: Predvidoma 3 - 5 dni | 11,00 € |  | |
| 108669RIE | R 1/4 | 8 | 14 | 23.6 | 50.8 | Čas dobave: Predvidoma 3 - 5 dni | 8,71 € | | |
| 108666RIE | R 1/8 | 8 | 12 | 19.8 | 50.8 | Čas dobave: Predvidoma 3 - 5 dni | 6,67 € | | |
| 108667RIE | R 1/4 | 4 | 14 | 22.6 | 37.2 | Čas dobave: Predvidoma 3 - 5 dni | 11,77 € | | |
| 108672RIE | R 3/8 | 10 | 17 | 27.1 | 54.4 | Čas dobave: Predvidoma 3 - 5 dni | 11,52 € | | |
| 108665RIE | R 1/8 | 6 | 12 | 19.8 | 43.8 | Čas dobave: Predvidoma 3 - 5 dni | 6,53 € | | |
| 108664RIE | R 1/8 | 4 | 12 | 19.8 | 37.2 | Čas dobave: Predvidoma 3 - 5 dni | 6,53 € | | |
| 108668RIE | R 1/4 | 6 | 14 | 22.6 | 43.8 | Čas dobave: Predvidoma 3 - 5 dni | 6,88 € | | |
| 108671RIE | R 3/8 | 8 | 17 | 27.1 | 47.2 | Čas dobave: Predvidoma 3 - 5 dni | 8,89 € | |
Opis
Push-in T-fitting »click-clock«, rotating, R 3/8 o., for hose exterior Ø 8, Working pressure -0.99 to 16 bar, nickel-plated brass
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Tehnični podatki in specifikacije
| Serija | click-clock |
| Min. delovni tlak [bar] | -0.99 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 80 |
| Priporočena cev | PA, PU |
| Rokav | Hostaform |
| Vpenjalni obroč | Stainless steel |
| Navoj | R 3/8 |
| Za cevi O.D. [mm] | 8 |
| L1 [mm] | 47.2 |
| L2 [mm] | 27.1 |
| a/f [mm] | 17 |
| Material | Nickel-plated brass |
