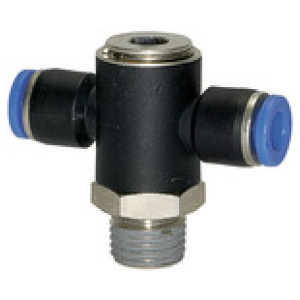

Vtični T priključek »blue serija«, vrtljivi, R 1/8 o.
SKU: 109573RIE
EAN: 4047322199339
Push-in T-fitting »Blue Series«, rotating, R 1/8 o., for hose exterior Ø 4 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
5,16 €

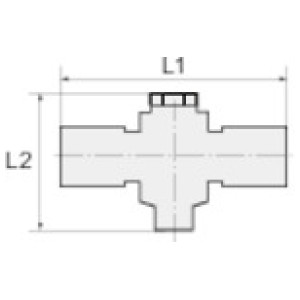

| Šifra | Navoj | Šestkotna glava vtičnice [mm] | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 109581RIE | R 3/8 | 8 | 10 | 20 | 39.7 | 63.5 | Čas dobave: Predvidoma 3 - 5 dni | 11,68 € |  | |
| 109573RIE | R 1/8 | 4 | 4 | 14 | 29.0 | 45.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,16 € | | |
| 109582RIE | R 3/8 | 8 | 12 | 20 | 39.7 | 64.9 | Čas dobave: Predvidoma 3 - 5 dni | 11,68 € | | |
| 109580RIE | R 3/8 | 8 | 8 | 20 | 39.7 | 56.3 | Čas dobave: Predvidoma 3 - 5 dni | 10,52 € | | |
| 109576RIE | R 1/4 | 6 | 6 | 17 | 38.0 | 46.7 | Čas dobave: Predvidoma 3 - 5 dni | 7,97 € | | |
| 109575RIE | R 1/8 | 4 | 8 | 14 | 29.0 | 48.5 | Čas dobave: Predvidoma 3 - 5 dni | 5,66 € | | |
| 109578RIE | R 1/4 | 6 | 10 | 17 | 38.0 | 59.6 | Čas dobave: Predvidoma 3 - 5 dni | 9,36 € | | |
| 109579RIE | R 1/4 | 6 | 12 | 17 | 38.0 | 61.2 | Čas dobave: Predvidoma 3 - 5 dni | 9,85 € | | |
| 109574RIE | R 1/8 | 4 | 6 | 14 | 29.0 | 42.6 | Čas dobave: Predvidoma 3 - 5 dni | 5,44 € | | |
| 109577RIE | R 1/4 | 6 | 8 | 17 | 38.0 | 52.5 | Čas dobave: Predvidoma 3 - 5 dni | 8,20 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Navoj | R 1/8 |
| Za cevi O.D. [mm] | 4 |
| L1 [mm] | 45.0 |
| L2 [mm] | 29.0 |
| a/f [mm] | 14 |
| Šestkotna glava vtičnice [mm] | 4 |
| Material | Plastic and nickel-plated brass |
