* slike so simbolične

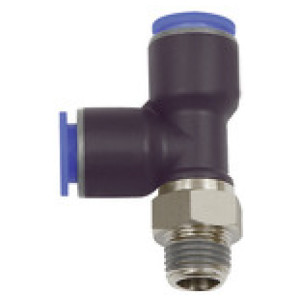

Vtični T prik. blue serija, L-oblike, ki se vrti, R 1/2
SKU: 109560RIE
EAN: 4047322025072
Push-in T-fitting »Blue Series«, L-shape, rotating, R 1/2 o., for hose exterior Ø 10 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
11,44 €

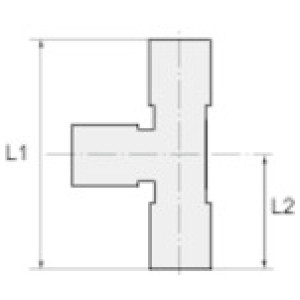

| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 109547RIE | R 1/8 | 10 | 17 | 26.9 | 52.3 | Čas dobave: Predvidoma 3 - 5 dni | 7,04 € |  | |
| 109561RIE | R 1/2 | 12 | 21 | 29.3 | 59.4 | Čas dobave: Predvidoma 3 - 5 dni | 12,50 € | | |
| 109544RIE | R 1/8 | 4 | 10 | 18.0 | 37.1 | Čas dobave: Predvidoma 3 - 5 dni | 4,51 € | | |
| 109549RIE | R 1/4 | 6 | 14 | 20.1 | 41.7 | Čas dobave: Predvidoma 3 - 5 dni | 5,61 € | | |
| 109554RIE | R 3/8 | 8 | 17 | 22.7 | 46.2 | Čas dobave: Predvidoma 3 - 5 dni | 6,99 € | | |
| 109559RIE | R 1/2 | 8 | 21 | 22.7 | 49.2 | Čas dobave: Predvidoma 3 - 5 dni | 6,73 € | | |
| 109546RIE | R 1/8 | 8 | 10 | 22.7 | 46.1 | Čas dobave: Predvidoma 3 - 5 dni | 6,51 € | | |
| 109558RIE | R 1/2 | 6 | 21 | 20.1 | 46.2 | Čas dobave: Predvidoma 3 - 5 dni | 6,73 € | | |
| 109552RIE | R 1/4 | 12 | 17 | 29.3 | 57.9 | Čas dobave: Predvidoma 3 - 5 dni | 6,00 € | | |
| 109555RIE | R 3/8 | 10 | 17 | 26.9 | 52.8 | Čas dobave: Predvidoma 3 - 5 dni | 8,95 € | | |
| 109556RIE | R 3/8 | 12 | 17 | 29.3 | 56.4 | Čas dobave: Predvidoma 3 - 5 dni | 10,89 € | | |
| 109545RIE | R 1/8 | 6 | 10 | 20.1 | 40.2 | Čas dobave: Predvidoma 3 - 5 dni | 5,23 € | | |
| 109562RIE | R 1/2 | 16 | 21 | 34.5 | 71.2 | Čas dobave: Predvidoma 3 - 5 dni | 13,46 € | | |
| 109557RIE | R 3/8 | 16 | 20 | 34.5 | 68.2 | Čas dobave: Predvidoma 3 - 5 dni | 12,86 € | | |
| 109551RIE | R 1/4 | 10 | 17 | 26.9 | 54.3 | Čas dobave: Predvidoma 3 - 5 dni | 8,33 € | | |
| 135653RIE | R 1/2 | 14 | 21 | 69.0 | 31.8 | Čas dobave: Predvidoma 3 - 5 dni | 13,29 € | | |
| 135652RIE | R 3/8 | 14 | 20 | 66.0 | 31.8 | Čas dobave: Predvidoma 3 - 5 dni | 12,69 € | | |
| 109548RIE | R 1/4 | 4 | 14 | 18.0 | 38.6 | Čas dobave: Predvidoma 3 - 5 dni | 3,96 € | | |
| 109550RIE | R 1/4 | 8 | 14 | 22.7 | 44.7 | Čas dobave: Predvidoma 3 - 5 dni | 6,65 € | | |
| 109553RIE | R 3/8 | 6 | 17 | 20.1 | 43.2 | Čas dobave: Predvidoma 3 - 5 dni | 4,50 € | | |
| 109560RIE | R 1/2 | 10 | 21 | 26.9 | 55.8 | Čas dobave: Predvidoma 3 - 5 dni | 11,44 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Navoj | R 1/2 |
| Za cevi O.D. [mm] | 10 |
| L1 [mm] | 55.8 |
| L2 [mm] | 26.9 |
| a/f [mm] | 21 |
| Material | Plastic and nickel-plated brass |
