* slike so simbolične

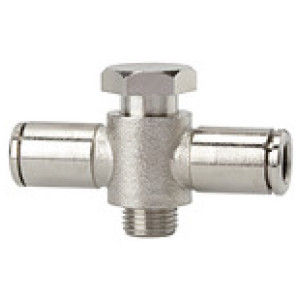

Vtični T prik. Metallice vrt., G 1/8 , Cev zunanja Ø6
SKU: 108964RIE
EAN: 4047322282260
Push-in T-fitting »metallica«, rotating, G 1/8 o., for hose exterior Ø 6, Working pressure -0.98 to 16 bar, nickel-plated brass
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Čas dobave: Predvidoma 3 - 5 dni
10,63 €

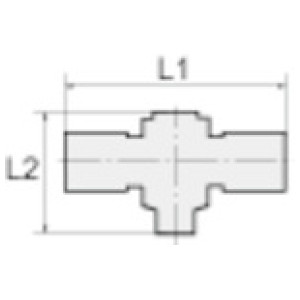

| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 108963RIE | G 1/8 | 4 | 14 | 28.0 | 42.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,86 € |  | |
| 108965RIE | G 1/4 | 6 | 17 | 33.0 | 48.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,93 € | | |
| 108964RIE | G 1/8 | 6 | 14 | 28.0 | 46.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,63 € | |
Opis
Push-in T-fitting »metallica«, rotating, G 1/8 o., for hose exterior Ø 6, Working pressure -0.98 to 16 bar, nickel-plated brass
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Tehnični podatki in specifikacije
| Serija | metallica |
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 150 |
| Priporočena cev | PA and PU |
| Rokav | Nickel-plated brass |
| Vpenjalni obroč | Male branch tees with outer hex |
| Navoj | G 1/8 |
| Za cevi O.D. [mm] | 6 |
| L1 [mm] | 46.0 |
| L2 [mm] | 28.0 |
| a/f [mm] | 14 |
| Material | Nickel-plated brass |
