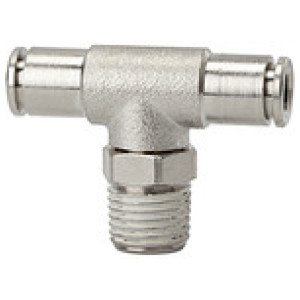

Vtični T prik. Metallica vrt., R 1/8, cev Ø 8
SKU: 108932RIE
EAN: 4047322279628
Push-in T-fitting »metallica«, rotating, R 1/8 o., for hose exterior Ø 8, Working pressure -0.98 to 16 bar, nickel-plated brass
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Čas dobave: Predvidoma 3 - 5 dni
8,38 €
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 108930RIE | R 1/8 | 4 | 13 | 20.0 | 40.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,38 € |  | |
| 108937RIE | R 3/8 | 10 | 18 | 30.0 | 53.0 | Čas dobave: Predvidoma 3 - 5 dni | 15,12 € | | |
| 108936RIE | R 3/8 | 8 | 18 | 28.0 | 47.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,76 € | | |
| 108938RIE | R 3/8 | 12 | 20 | 32.5 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 16,62 € | | |
| 108933RIE | R 1/4 | 6 | 14 | 25.0 | 43.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,80 € | | |
| 108939RIE | R 1/2 | 12 | 22 | 35.5 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 18,91 € | | |
| 108931RIE | R 1/8 | 6 | 13 | 20.0 | 43.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,31 € | | |
| 108934RIE | R 1/4 | 8 | 14 | 25.0 | 47.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,14 € | | |
| 108935RIE | R 1/4 | 10 | 16 | 26.0 | 53.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,13 € | | |
| 137015RIE | R 1/2 | 14 | 22 | 35.5 | 64.0 | Čas dobave: Predvidoma 3 - 5 dni | 21,13 € | | |
| 137014RIE | R 3/8 | 14 | 22 | 32.5 | 64.0 | Čas dobave: Predvidoma 3 - 5 dni | 19,64 € | | |
| 108932RIE | R 1/8 | 8 | 13 | 20.0 | 47.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,38 € | |
Opis
Push-in T-fitting »metallica«, rotating, R 1/8 o., for hose exterior Ø 8, Working pressure -0.98 to 16 bar, nickel-plated brass
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Tehnični podatki in specifikacije
| Serija | metallica |
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 150 |
| Priporočena cev | PA and PU |
| Rokav | Nickel-plated brass |
| Vpenjalni obroč | Male branch tee, swivel type, conical male thread, coated |
| Navoj | R 1/8 |
| Za cevi O.D. [mm] | 8 |
| L1 [mm] | 47.0 |
| L2 [mm] | 20.0 |
| a/f [mm] | 13 |
| Material | Nickel-plated brass |
