* slike so simbolične

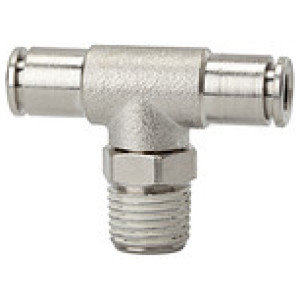

Vtični T prik. Metallica vrt., R 1/2, cev Ø 14
SKU: 137015RIE
EAN: 4047322509992
Push-in T-fitting »metallica«, rotating, R 1/2 o., for hose exterior Ø 14, Working pressure -0.98 to 16 bar, nickel-plated brass
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|
108930RIE | R 1/8 | 4 | 13 | 20.0 | 40.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,38 € | | |
108937RIE | R 3/8 | 10 | 18 | 30.0 | 53.0 | Čas dobave: Predvidoma 3 - 5 dni | 15,12 € | | |
108936RIE | R 3/8 | 8 | 18 | 28.0 | 47.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,76 € | | |
108938RIE | R 3/8 | 12 | 20 | 32.5 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 16,62 € | | |
108933RIE | R 1/4 | 6 | 14 | 25.0 | 43.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,80 € | | |
108939RIE | R 1/2 | 12 | 22 | 35.5 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 18,91 € | | |
108931RIE | R 1/8 | 6 | 13 | 20.0 | 43.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,31 € | | |
108934RIE | R 1/4 | 8 | 14 | 25.0 | 47.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,14 € | | |
108935RIE | R 1/4 | 10 | 16 | 26.0 | 53.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,13 € | | |
137015RIE | R 1/2 | 14 | 22 | 35.5 | 64.0 | Čas dobave: Predvidoma 3 - 5 dni | 21,13 € | | |
137014RIE | R 3/8 | 14 | 22 | 32.5 | 64.0 | Čas dobave: Predvidoma 3 - 5 dni | 19,64 € | | |
108932RIE | R 1/8 | 8 | 13 | 20.0 | 47.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,38 € | |
Opis
Push-in T-fitting »metallica«, rotating, R 1/2 o., for hose exterior Ø 14, Working pressure -0.98 to 16 bar, nickel-plated brass
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Tehnični podatki in specifikacije
Serija | metallica |
Min. delovni tlak [bar] | -0.98 |
Max. delovni tlak [bar] | 16 |
Min. delovna temperatura [°C] | -20 |
Max. delovna temperatura [°C] | 150 |
Priporočena cev | PA and PU |
Rokav | Nickel-plated brass |
Vpenjalni obroč | Male branch tee, swivel type, conical male thread, coated |
Navoj | R 1/2 |
Za cevi O.D. [mm] | 14 |
L1 [mm] | 64.0 |
L2 [mm] | 35.5 |
a/f [mm] | 22 |
Material | Nickel-plated brass |
