Vtični T-prik. L-oblike Metallica, vrt., G 1/4
SKU: 108943RIE
EAN: 4047322279703

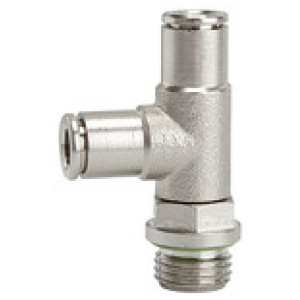

Push-in T-fitting L-shape »metallica«, rotating, G 1/4 o., for hose exterior Ø 6 mm, Working pressure -0.98 to 16 bar
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion

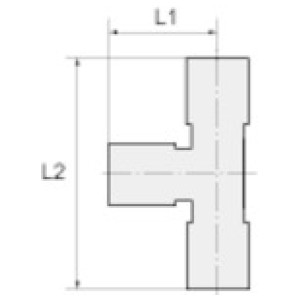

Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | L2 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|
108948RIE | G 3/8 | 12 | 16 | 29.0 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 17,74 € | | |
137016RIE | G 3/8 | 14 | 20 | 32.0 | 60.5 | Čas dobave: Predvidoma 3 - 5 dni | 17,13 € | | |
108945RIE | G 1/4 | 10 | 16 | 27.0 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,35 € | | |
108943RIE | G 1/4 | 6 | 13 | 21.0 | 45.5 | Čas dobave: Predvidoma 3 - 5 dni | 8,10 € | | |
108946RIE | G 3/8 | 8 | 13 | 23.4 | 49.1 | Čas dobave: Predvidoma 3 - 5 dni | 9,85 € | | |
108949RIE | G 1/2 | 12 | 16 | 28.5 | 58.5 | Čas dobave: Predvidoma 3 - 5 dni | 17,98 € | | |
108947RIE | G 3/8 | 10 | 16 | 27.0 | 54.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,11 € | | |
108941RIE | G 1/8 | 6 | 13 | 21.0 | 41.5 | Čas dobave: Predvidoma 3 - 5 dni | 8,10 € | | |
108942RIE | G 1/8 | 8 | 13 | 23.0 | 43.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,10 € | | |
108940RIE | G 1/8 | 4 | 13 | 17.5 | 35.5 | Čas dobave: Predvidoma 3 - 5 dni | 8,58 € | | |
108944RIE | G 1/4 | 8 | 13 | 23.0 | 47.5 | Čas dobave: Predvidoma 3 - 5 dni | 8,66 € | | |
137017RIE | G 1/2 | 14 | 20 | 33.0 | 67.0 | Čas dobave: Predvidoma 3 - 5 dni | 17,73 € | |
Opis
Push-in T-fitting L-shape »metallica«, rotating, G 1/4 o., for hose exterior Ø 6 mm, Working pressure -0.98 to 16 bar
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Tehnični podatki in specifikacije
Serija | metallica |
Min. delovni tlak [bar] | -0.98 |
Max. delovni tlak [bar] | 16 |
Min. delovna temperatura [°C] | -20 |
Max. delovna temperatura [°C] | 150 |
Priporočena cev | PA and PU |
Rokav | Nickel-plated brass |
Vpenjalni obroč | Male branch tees, angled plug connections |
Navoj | G 1/4 |
Za cevi O.D. [mm] | 6 |
L1 [mm] | 21.0 |
L2 [mm] | 45.5 |
a/f [mm] | 13 |
Material | Nickel-plated brass |
