* slike so simbolične
Vtični T-okovja »Click-klak«, vrtljivi, G 3/8 o.
SKU: 108687RIE
EAN: 4047322210218

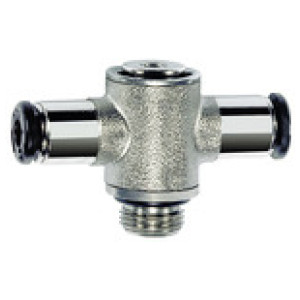

Push-in T-fitting »click-clock«, rotating, G 3/8 o., hose exterior Ø 10, Working pressure -0.99 to 16 bar, nickel-plated brass
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Čas dobave: Predvidoma 3 - 5 dni
20,25 €

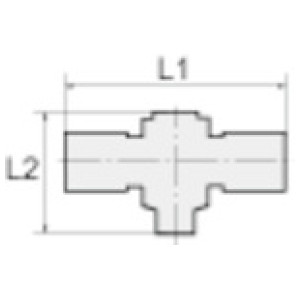

| Šifra | Navoj | a/f [mm] | Za cevi O.D. [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 108674RIE | M5 | 2 | 5 | 18.8 | 47.6 | Čas dobave: Predvidoma 3 - 5 dni | 13,43 € |  | |
| 108688RIE | G 3/8 | 5 | 12 | 35.6 | 69.6 | Čas dobave: Predvidoma 3 - 5 dni | 21,37 € | | |
| 108681RIE | G 1/8 | 3 | 8 | 24.9 | 49.6 | Čas dobave: Predvidoma 3 - 5 dni | 11,60 € | | |
| 108683RIE | G 1/4 | 4 | 8 | 29.4 | 53.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,80 € | | |
| 108684RIE | G 1/4 | 4 | 10 | 29.4 | 62.8 | Čas dobave: Predvidoma 3 - 5 dni | 15,63 € | | |
| 108682RIE | G 1/4 | 4 | 6 | 29.4 | 49.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,80 € | | |
| 108676RIE | M7 | 3 | 4 | 18.5 | 40.4 | Čas dobave: Predvidoma 3 - 5 dni | 12,44 € | | |
| 108680RIE | G 1/8 | 3 | 6 | 24.9 | 46.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,54 € | | |
| 108678RIE | G 1/8 | 3 | 4 | 24.9 | 42.6 | Čas dobave: Predvidoma 3 - 5 dni | 11,54 € | | |
| 108686RIE | G 3/8 | 5 | 8 | 35.6 | 57.0 | Čas dobave: Predvidoma 3 - 5 dni | 19,93 € | | |
| 108677RIE | M7 | 3 | 6 | 18.5 | 47.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,44 € | | |
| 108689RIE | G 1/2 | 8 | 12 | 40.8 | 73.0 | Čas dobave: Predvidoma 3 - 5 dni | 24,95 € | | |
| 108685RIE | G 1/4 | 4 | 12 | 29.4 | 66.0 | Čas dobave: Predvidoma 3 - 5 dni | 16,14 € | | |
| 108679RIE | G 1/8 | 3 | 5 | 27.0 | 49.5 | Čas dobave: Predvidoma 3 - 5 dni | 14,42 € | | |
| 108675RIE | M5 | 2 | 6 | 18.4 | 47.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,05 € | | |
| 108673RIE | M5 | 2 | 4 | 18.4 | 40.4 | Čas dobave: Predvidoma 3 - 5 dni | 10,76 € | | |
| 108687RIE | G 3/8 | 5 | 10 | 35.6 | 65.6 | Čas dobave: Predvidoma 3 - 5 dni | 20,25 € | |
Opis
Push-in T-fitting »click-clock«, rotating, G 3/8 o., hose exterior Ø 10, Working pressure -0.99 to 16 bar, nickel-plated brass
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Tehnični podatki in specifikacije
| Serija | click-clock |
| Min. delovni tlak [bar] | -0.99 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 80 |
| Priporočena cev | PA, PU |
| Rokav | Hostaform |
| Vpenjalni obroč | Stainless steel |
| Navoj | G 3/8 |
| Za cevi O.D. [mm] | 10 |
| L1 [mm] | 65.6 |
| L2 [mm] | 35.6 |
| a/f [mm] | 5 |
| Material | Nickel-plated brass |
