Vtični T-okovja »Click-klak«, vrtljivi, G 1/4 o.
SKU: 108695RIE
EAN: 4047322272155

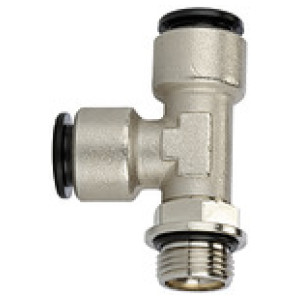

Push-in T-fitting »click-clock«, rotating, G 1/4 o., hose exterior Ø 10, Working pressure -0.99 to 16 bar, nickel-plated brass
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Čas dobave: Predvidoma 3 - 5 dni
10,44 €

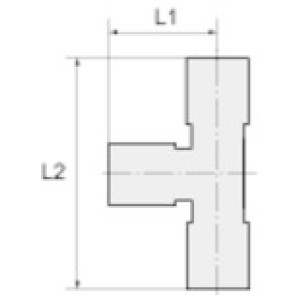

| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | L2 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 108694RIE | G 1/4 | 8 | 14 | 25.4 | 47.5 | Čas dobave: Predvidoma 3 - 5 dni | 8,53 € |  | |
| 108697RIE | G 3/8 | 12 | 17 | 30.0 | 57.1 | Čas dobave: Predvidoma 3 - 5 dni | 12,77 € | | |
| 108692RIE | G 1/8 | 8 | 12 | 25.4 | 44.5 | Čas dobave: Predvidoma 3 - 5 dni | 8,20 € | | |
| 108695RIE | G 1/4 | 10 | 14 | 27.2 | 49.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,44 € | | |
| 108690RIE | G 1/8 | 4 | 12 | 18.6 | 37.7 | Čas dobave: Predvidoma 3 - 5 dni | 7,61 € | | |
| 108698RIE | G 1/2 | 12 | 22 | 30.0 | 60.7 | Čas dobave: Predvidoma 3 - 5 dni | 15,35 € | | |
| 108691RIE | G 1/8 | 6 | 12 | 21.9 | 41.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,73 € | | |
| 108696RIE | G 3/8 | 10 | 17 | 27.2 | 54.3 | Čas dobave: Predvidoma 3 - 5 dni | 11,43 € | | |
| 108693RIE | G 1/4 | 6 | 14 | 21.9 | 43.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,05 € | |
Opis
Push-in T-fitting »click-clock«, rotating, G 1/4 o., hose exterior Ø 10, Working pressure -0.99 to 16 bar, nickel-plated brass
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Tehnični podatki in specifikacije
| Serija | click-clock |
| Min. delovni tlak [bar] | -0.99 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 80 |
| Priporočena cev | PA, PU |
| Rokav | Hostaform |
| Vpenjalni obroč | Stainless steel |
| Navoj | G 1/4 |
| Za cevi O.D. [mm] | 10 |
| L1 [mm] | 27.2 |
| L2 [mm] | 49.0 |
| a/f [mm] | 14 |
| Material | Nickel-plated brass |
