Vtični-L fiting Metallice vrt., R 1/4, cev Ø 6
SKU: 108913RIE
EAN: 4047322279451

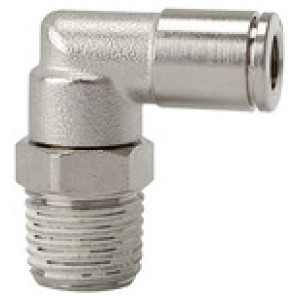

Push-in L-fitting »metallica«, rotating, R 1/4 o., for hose exterior Ø 6, Working pressure -0.98 to 16 bar, nickel-plated brass
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|
108910RIE | R 1/8 | 6 | 13 | 20.0 | 21.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,06 € | | |
108912RIE | R 1/4 | 4 | 14 | 25.0 | 20.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,28 € | | |
108914RIE | R 1/4 | 8 | 14 | 25.0 | 24.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,60 € | | |
108917RIE | R 3/8 | 10 | 18 | 30.0 | 27.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,64 € | | |
108911RIE | R 1/8 | 8 | 13 | 20.0 | 24.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,06 € | | |
108909RIE | R 1/8 | 4 | 13 | 20.0 | 20.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,87 € | | |
137011RIE | R 1/2 | 14 | 22 | 35.5 | 32.0 | Čas dobave: Predvidoma 3 - 5 dni | 15,65 € | | |
108916RIE | R 3/8 | 8 | 18 | 28.0 | 24.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,71 € | | |
108915RIE | R 1/4 | 10 | 16 | 26.0 | 27.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,80 € | | |
137010RIE | R 3/8 | 14 | 20 | 32.5 | 32.0 | Čas dobave: Predvidoma 3 - 5 dni | 14,69 € | | |
108918RIE | R 3/8 | 12 | 20 | 32.5 | 29.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,19 € | | |
108913RIE | R 1/4 | 6 | 14 | 25.0 | 21.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,42 € | | |
108919RIE | R 1/2 | 12 | 22 | 35.5 | 29.0 | Čas dobave: Predvidoma 3 - 5 dni | 14,01 € | |
Opis
Push-in L-fitting »metallica«, rotating, R 1/4 o., for hose exterior Ø 6, Working pressure -0.98 to 16 bar, nickel-plated brass
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Tehnični podatki in specifikacije
Serija | metallica |
Min. delovni tlak [bar] | -0.98 |
Max. delovni tlak [bar] | 16 |
Min. delovna temperatura [°C] | -20 |
Max. delovna temperatura [°C] | 150 |
Priporočena cev | PA and PU |
Rokav | Nickel-plated brass |
Vpenjalni obroč | Male elbow, swivel type, conical male thread, coated |
Navoj | R 1/4 |
Za cevi O.D. [mm] | 6 |
L1 [mm] | 21.0 |
L2 [mm] | 25.0 |
a/f [mm] | 14 |
Material | Nickel-plated brass |
